Throttle Cable/Linkage: Service and Repair

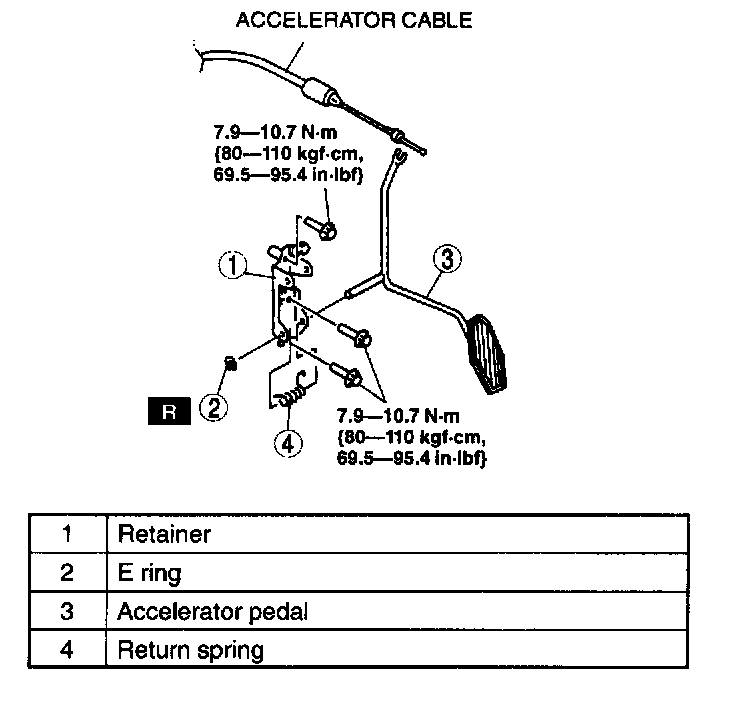

ACCELERATOR CABLE REMOVAL/INSTALLATION




1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

Accelerator Pedal Installation Note
- Set the accelerator pedal securely, taking care not to bend the accelerator cable.
