Headlamp Switch: Testing and Inspection

COMBINATION SWITCH INSPECTION

1. Remove the light switch.
2. Inspect for continuity between the light switch terminals using an ohmmeter.
It not as specified, replace the light switch.

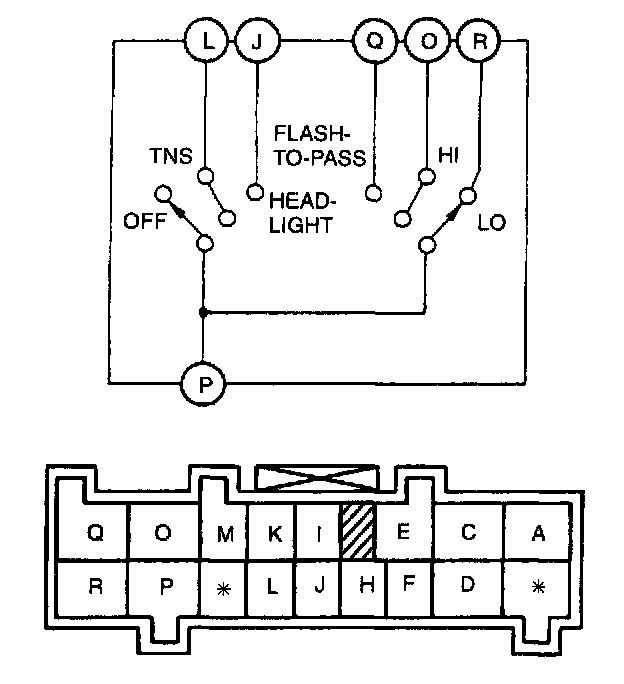

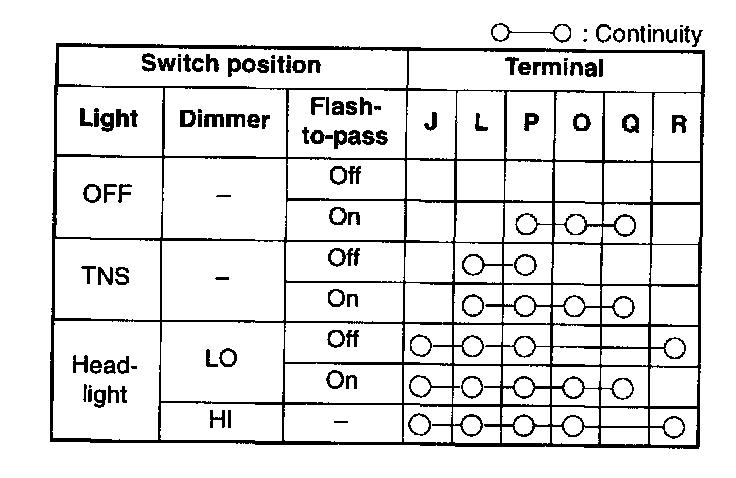

Headlight switch

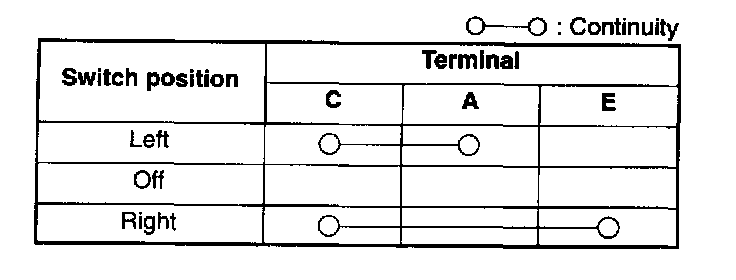

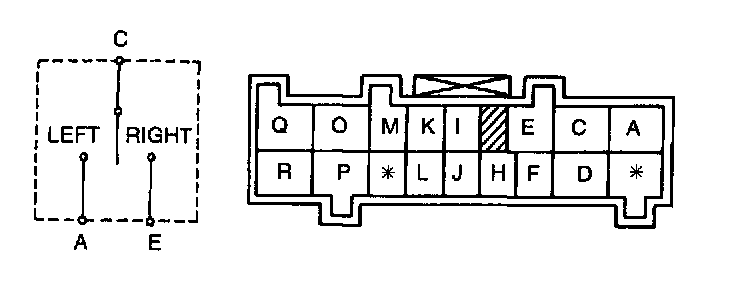

Turn switch
