Interior and Spot Light
Interior and Spot Light
INTERIOR AND SPOT LIGHT INSPECTION
1.
Remove the interior and spot light.
2.

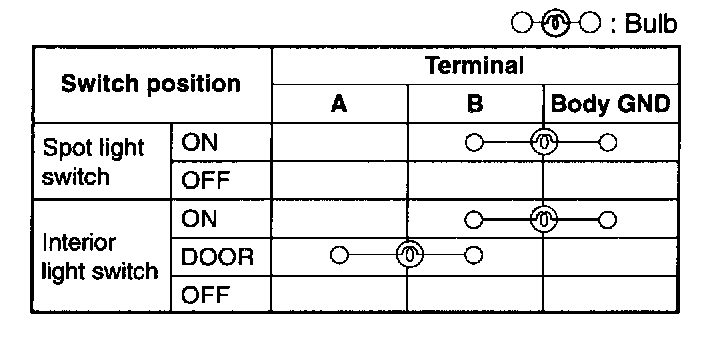

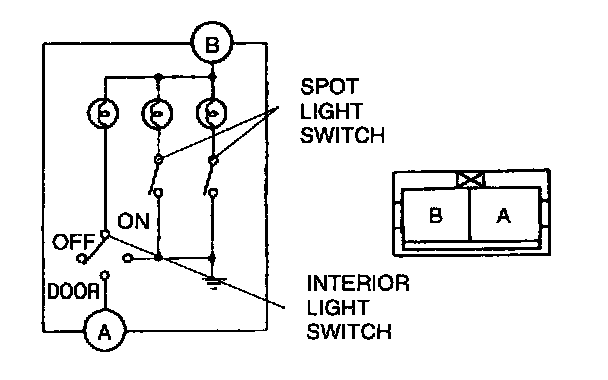

Inspect for continuity between the interior and spot light terminals using an ohmmeter.
-
If not as specified, replace the interior and spot light.
