Cigarette Lighter: Service and Repair

CIGARETTE LIGHTER REMOVAL/INSTALLATION



1. Disconnect the negative battery cable.
2. Remove the console.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

Socket Removal Note

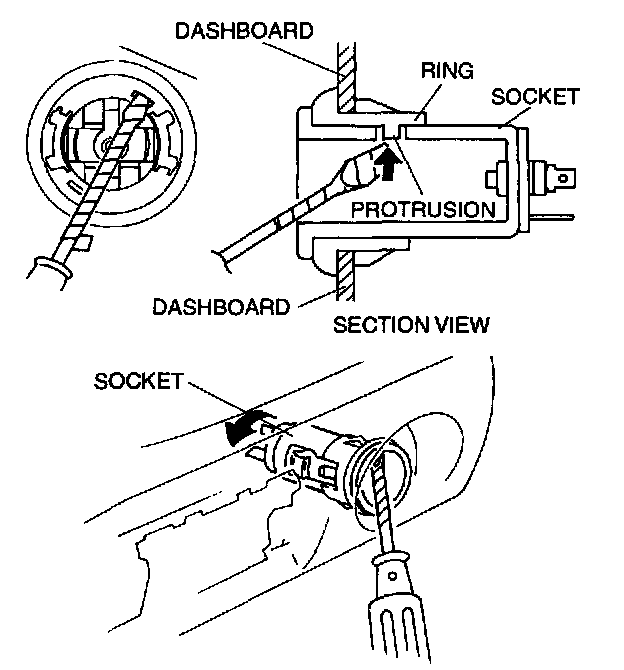

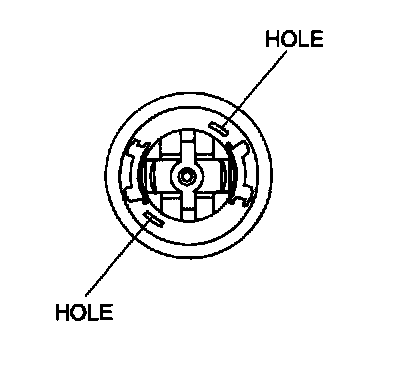

1. Turn the socket while pushing the protrusion of the ring through the hole of the socket with a tape-wrapped screwdriver.
2. Push the socket forward.




3. Return the socket clockwise to original angle position as shown to pull it out forward.

Ring Removal Note




1. Pull the ring forward while pushing the hooks.
