Condenser Fan Motor: Testing and Inspection

CONDENSER FAN INSPECTION




1. Disconnect the condenser fan connector.

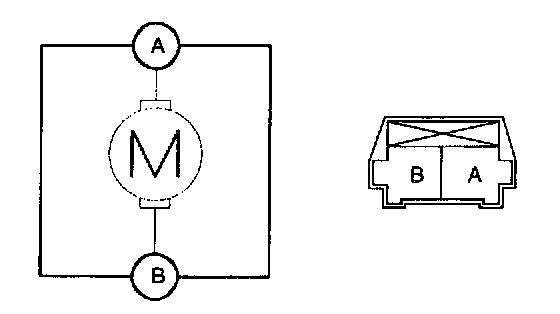

2. Connect battery positive voltage to terminal A and ground to terminal B of the condenser fan and verify its operation.
If not as specified, replace the condenser fan.
