Daytime Running Lamp
Daytime Running Lamp

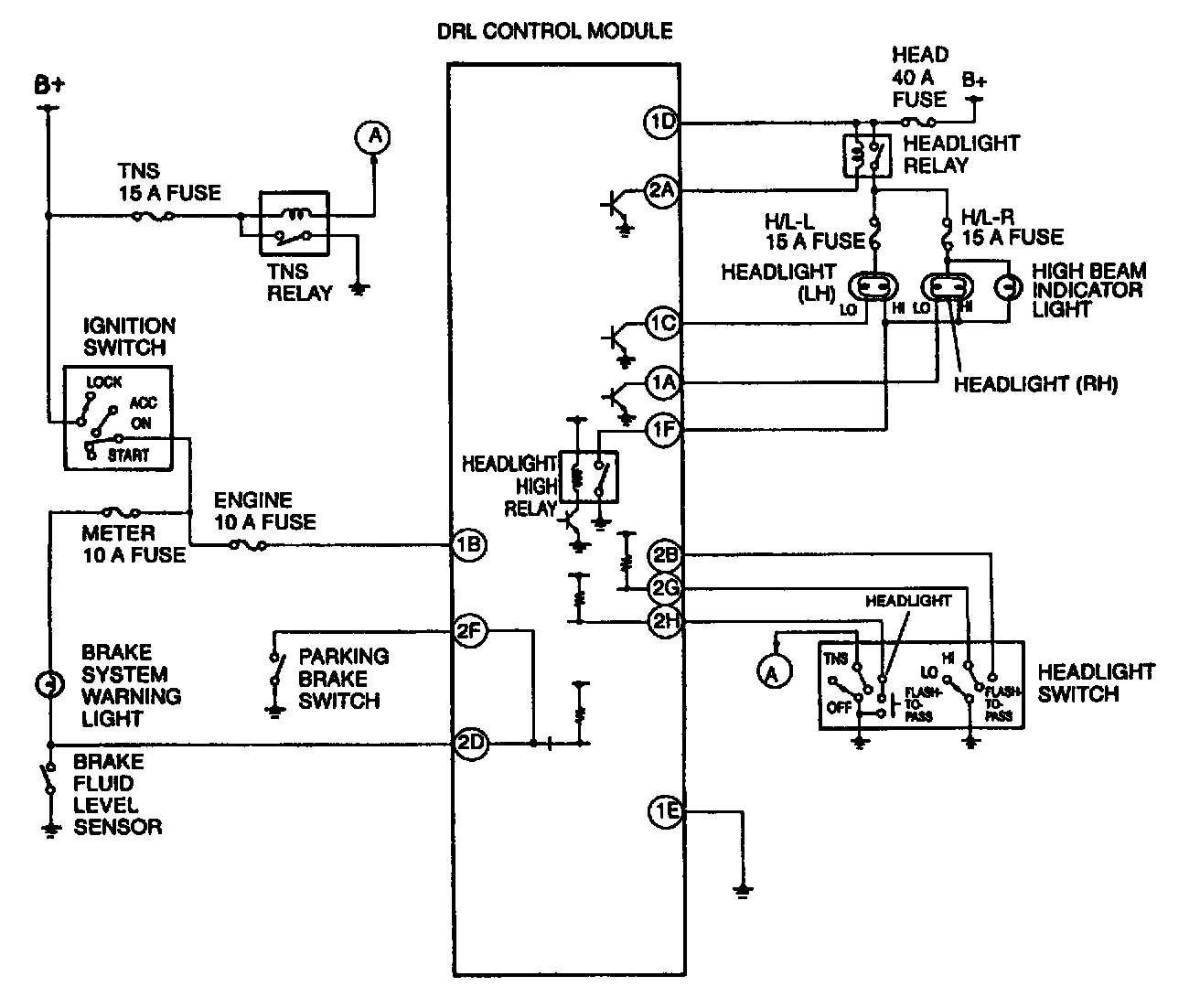

DAYTIME RUNNING LIGHT (DRL) SYSTEM WIRING DIAGRAM (CANADA):
