Radio, Stereo, and Compact Disc: Service and Repair

AUDIO UNIT REMOVAL

NOTE: To deter would-be thieves, MW/U1/U2 radio with cassette player has a removable front panel without which the radio will not operate.

1. Disconnect the negative battery cable.

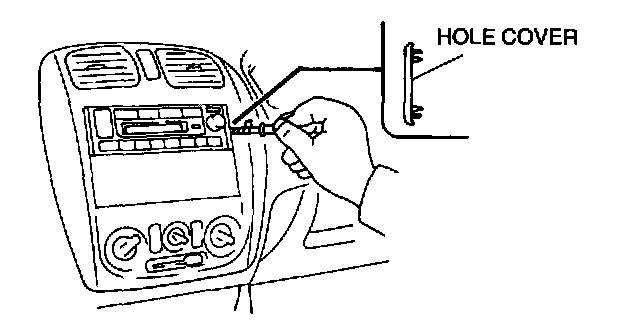

2. Remove the hole covers by inserting a small, tape-wrapped flathead screwdriver into the slot and carefully pry the hole covers off without scratching the center panel.
- Pry up and pull oft the hole covers carefully to prevent the posts from breaking oft.
3. With the beveled parts of the SST (Removing Tool) facing inward, insert them into the unit.




4. Pull the SST (Removing Tool) outward and rearward to slide out the unit.
5. Disconnect the connectors and antenna plug.

AUDIO UNIT INSTALLATION
1. Connect the connectors and antenna plug.
2. Install the hole covers to the unit.

CAUTION: Make certain that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the harness or the antenna feeder is caught between the unit and dashboard, it may become the cause of trouble or malfunctions.

3. Insert the unit until each clip clicks.
4. Connect the negative battery cable
