Windshield Washer Motor: Service and Repair

WINDSHIELD WASHER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the right mud guard.
3. Extract the washer fluid.
4. Disconnect the connector.
5. Pull out the windshield washer pipe.

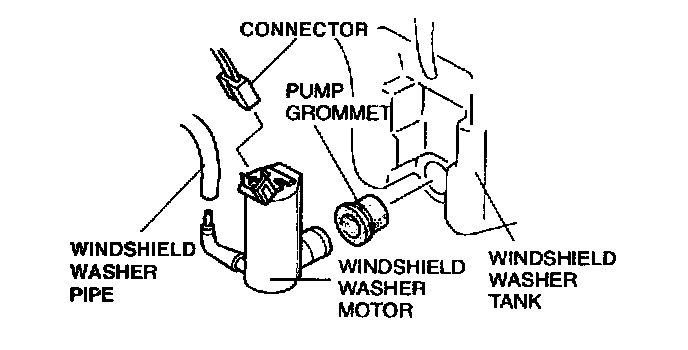

6. Remove the windshield washer motor as shown.




7. Remove the pump grommet.
8. Install in the reverse order of removal.
