Washer Fluid Level Indicator: Testing and Inspection

WASHER FLUID-LEVEL SENSOR INSPECTION

1. Remove the right mud guard.
2. Disconnect the washer fluid-level sensor connector.

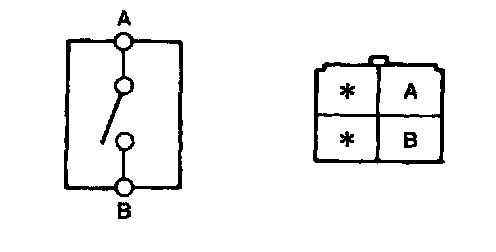

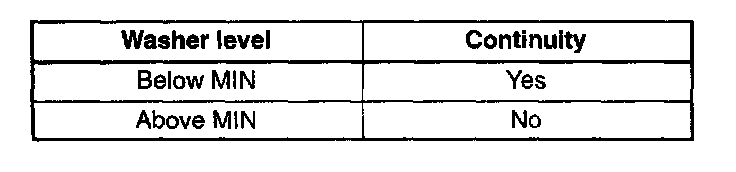

3. Check for continuity between terminal A and B of the washer fluid-level sensor.
4. If not as specified, replace the washer fluid-level sensor.
