Diagnosis Chart
DIAGNOSIS CHART

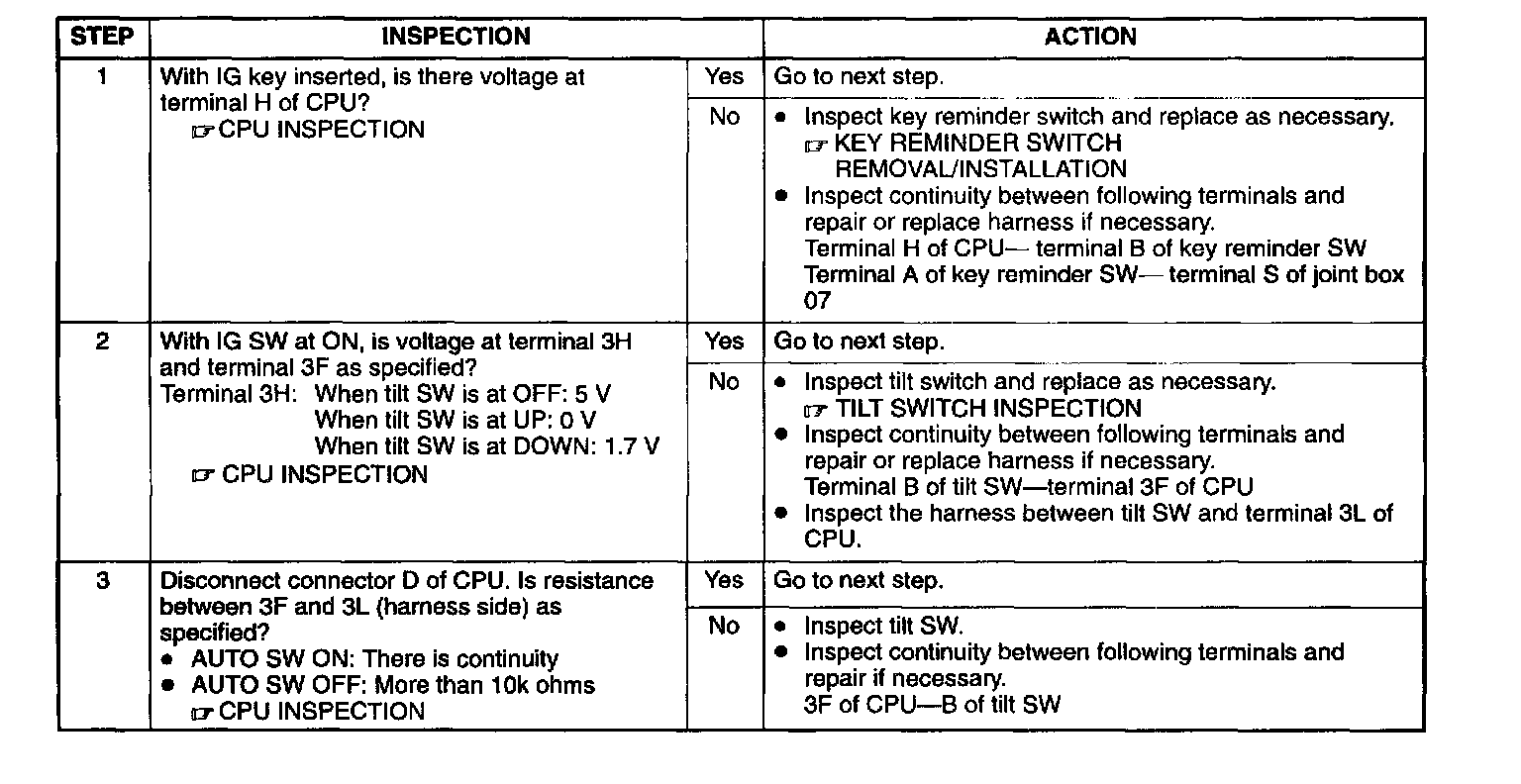

- Before proceeding with the diagnosis steps, make sure that none of the operation stop conditions is met. (Refer to System Inspection.) If faulty Operation persists, then follow the steps in the image.

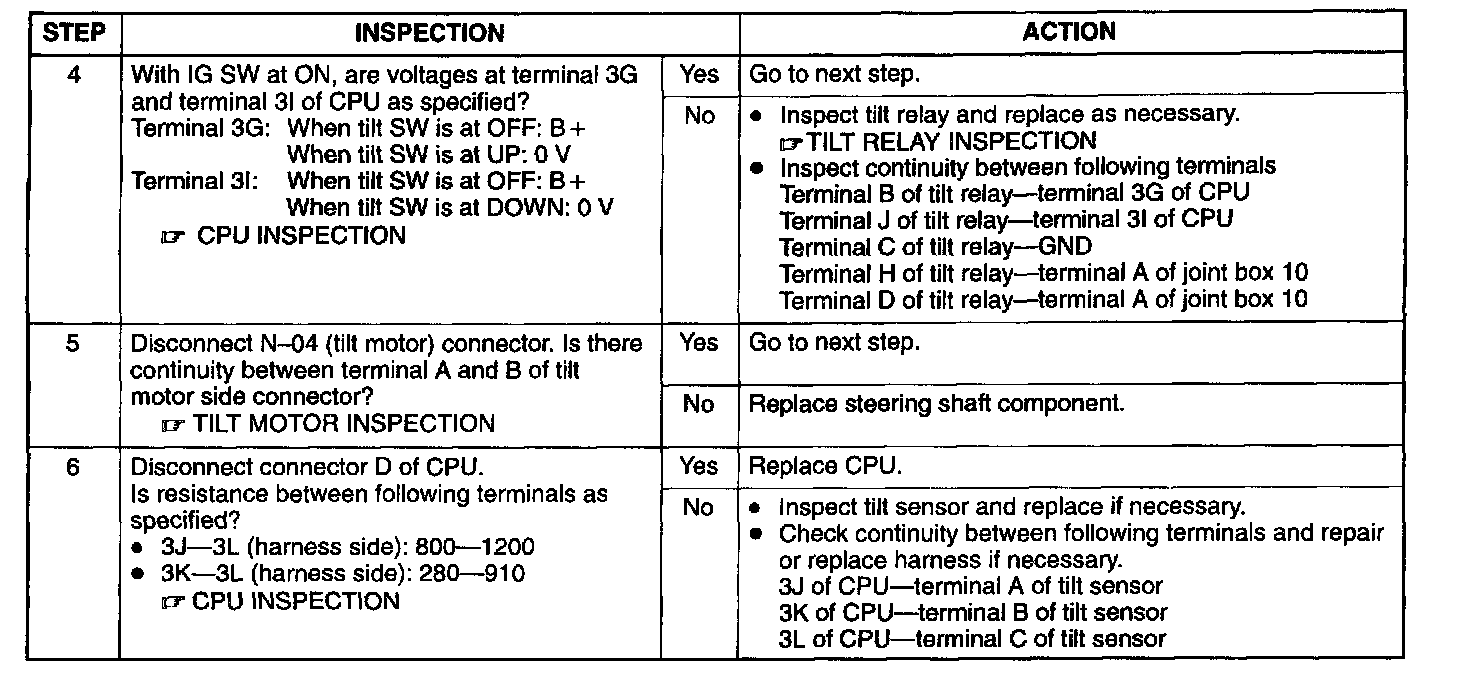

- Before proceeding with the diagnosis steps, make sure that none of the operation stop conditions is met. (Refer to System Inspection.) If faulty Operation persists, then follow the steps in the image.
