Removal and Installation

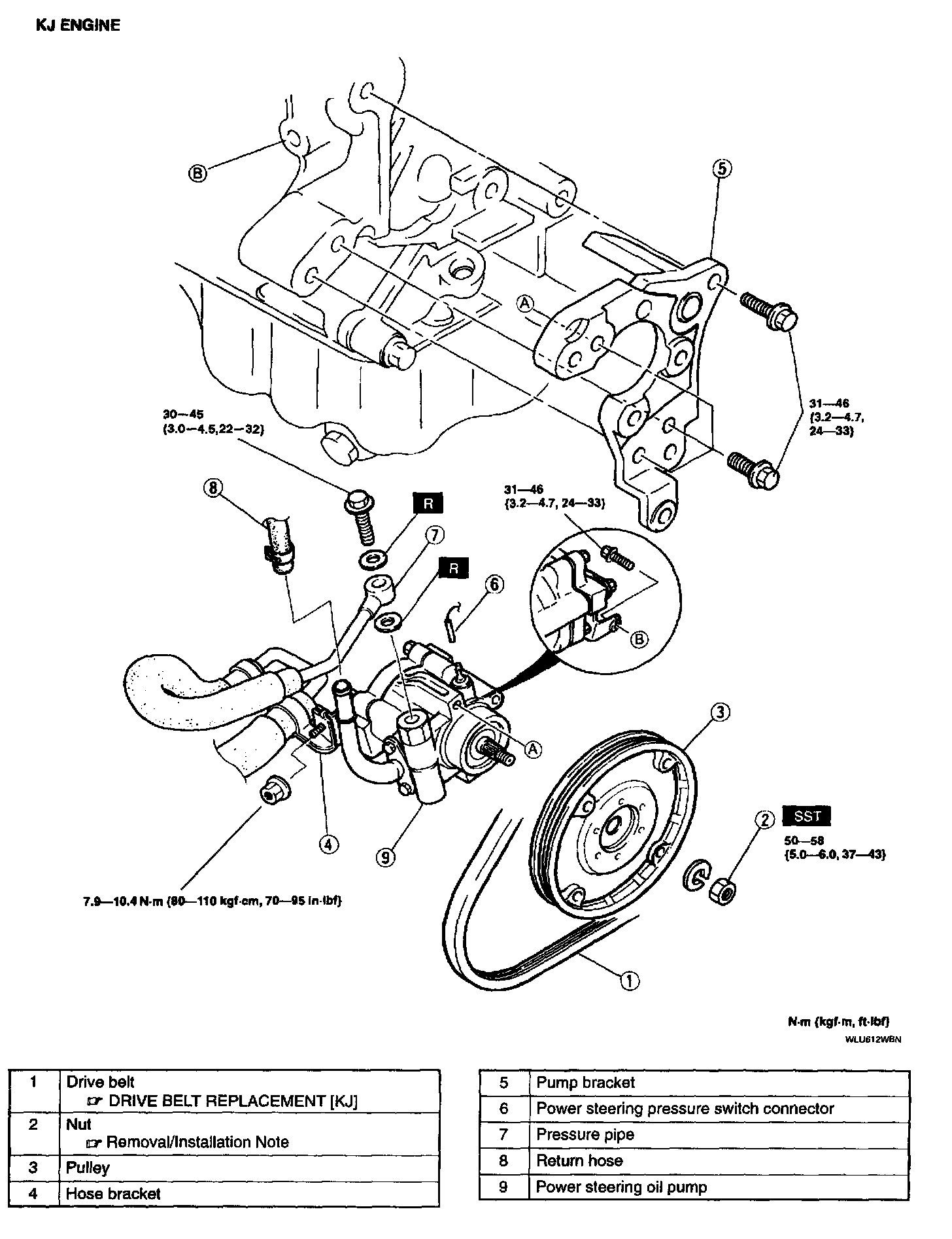

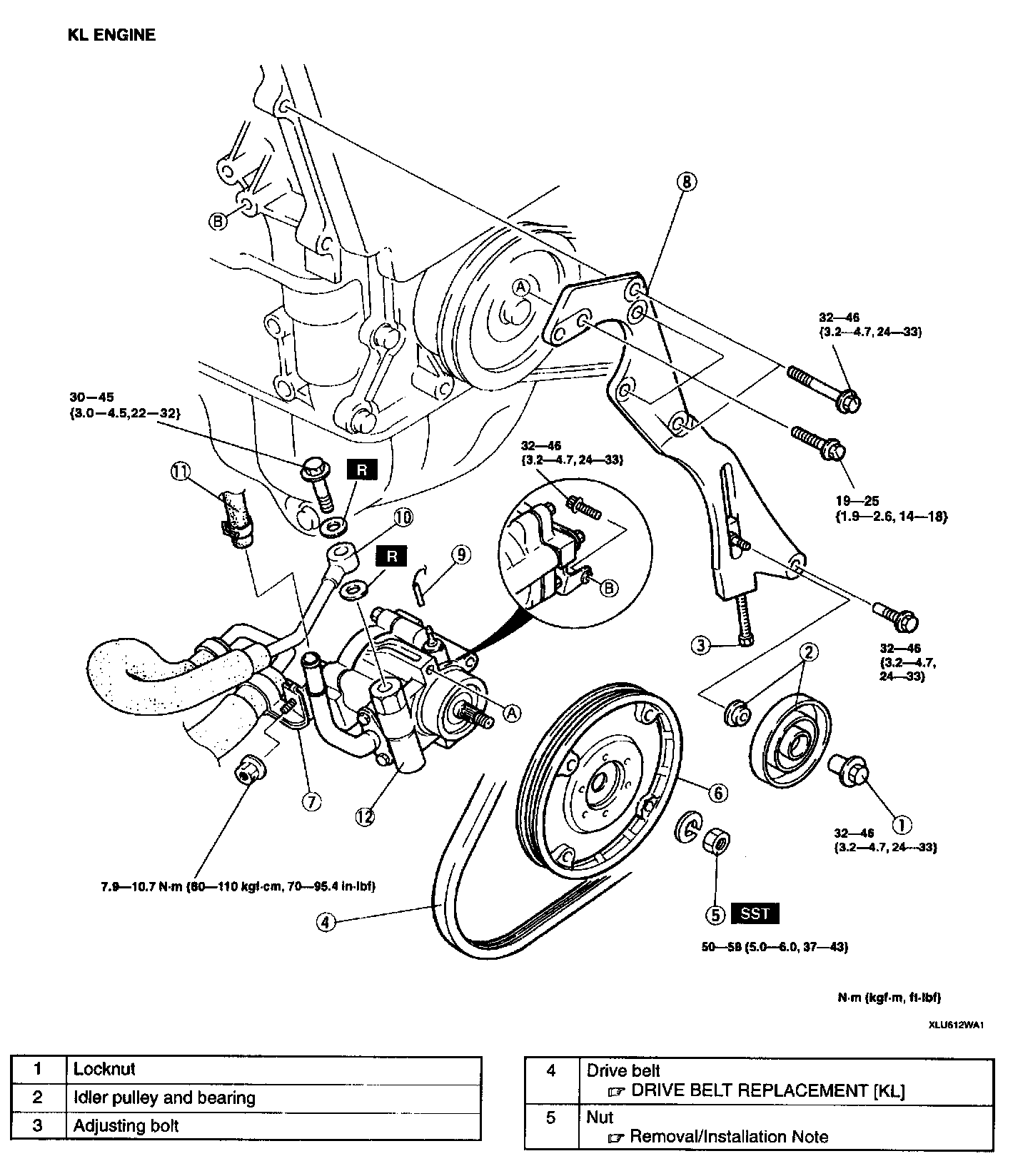

POWER STEERING OIL PUMP REMOVAL/INSTALLATION

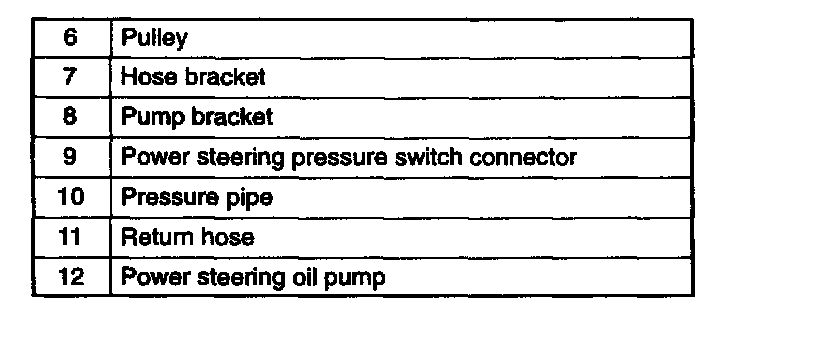

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

Nut Removal/Installation Note

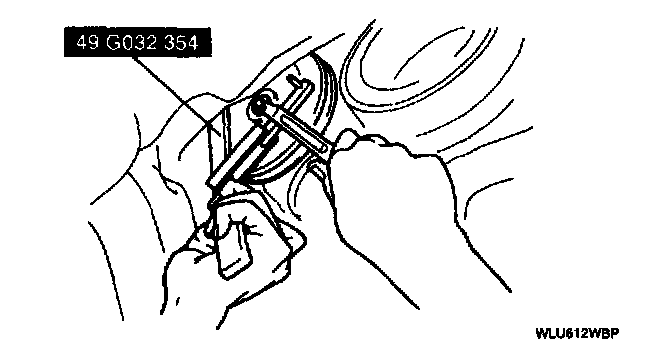

- Insert the SST into the hole of the pulley. While holding the pulley, loosen/tighten the nut.
