Horn Relay: Testing and Inspection

HORN RELAY REMOVAL/INSTALLATION

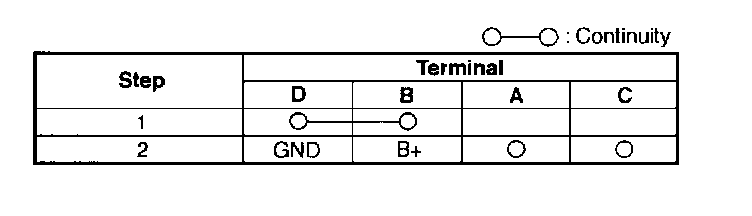

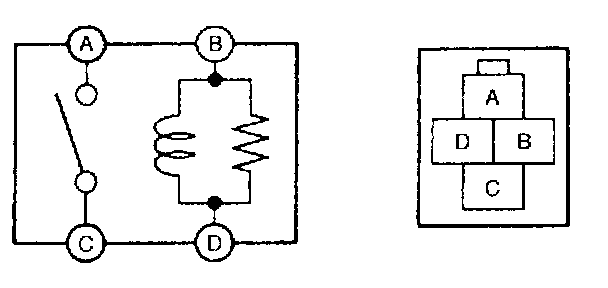

1. Apply battery positive voltage and check for continuity between the horn relay terminals.
2. If not as specified, replace the horn relay.
