Evaporative Emission Control Canister: Testing and Inspection

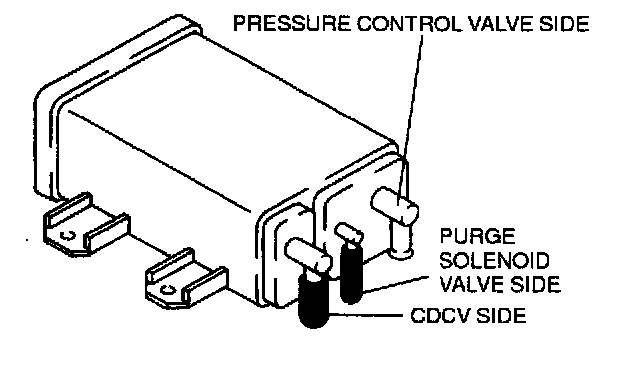

1. Plug the CDCV side port and purge solenoid valve side port as shown in the figure.
2. Blow air into the charcoal canister from the pressure control valve side port and verify that there is no air leakage.
3. If not as specified, replace the charcoal canister.
