Wheel Hub: Testing and Inspection

FRONT AND REAR WHEEL BEARING PLAY INSPECTION
1. Remove the brake caliper component and disc plate.

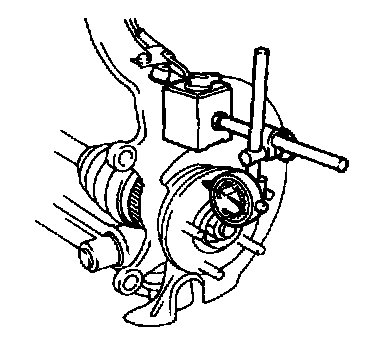

2. Position a dial indicator against the wheel hub. Push and pull the wheel hub by hand in the axial direction and measure the wheel bearing play.
3. If the bearing play exceeds the specification, inspect and adjust the locknut torque or replace the wheel bearing if necessary.

Max. wheel bearing end play: 0.05 mm {0.002 inch}
