Rear

WHEEL HUB, HUB SPINDLE REMOVAL/INSTALLATION

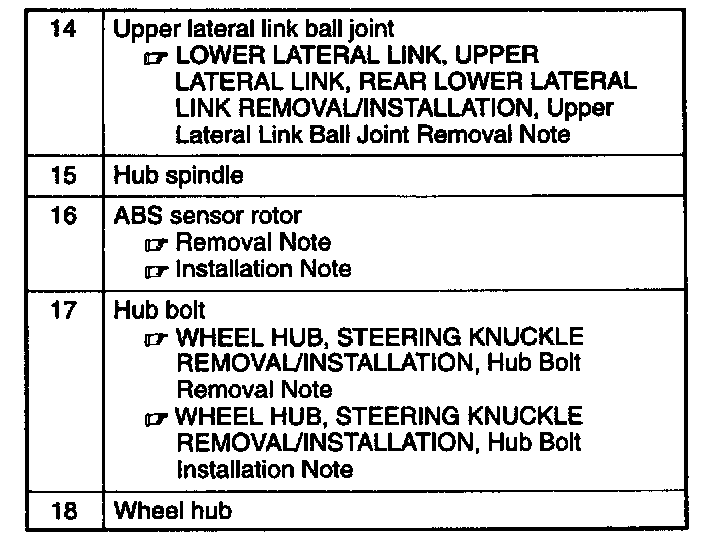

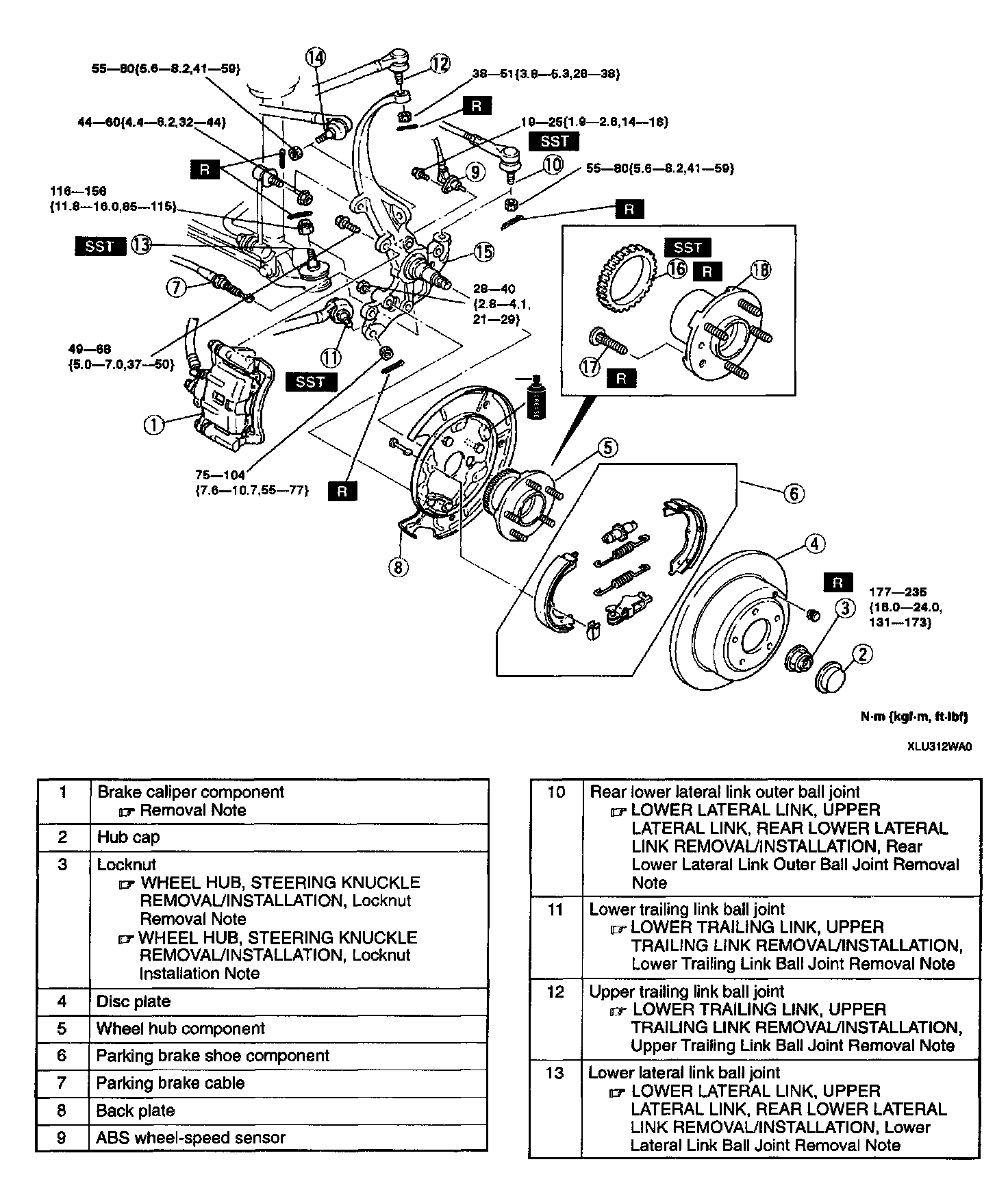

1. Remove in the order indicated in the table.
2. Install the reverse order of removal.

CAUTION: Leave the nuts on the ball joint studs until removing the axle component. This will keep the axle weight distributed evenly and prevent damage to the link bushing.

Brake Caliper Component Removal Note

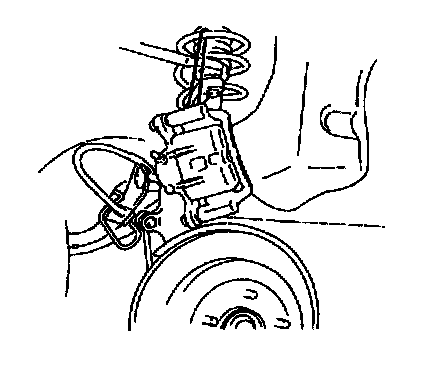

- Suspend the brake caliper component as shown in the figure.

ABS Sensor Rotor Removal Note

NOTE:
^ The sensor rotor does not need to be removed unless replacing it.

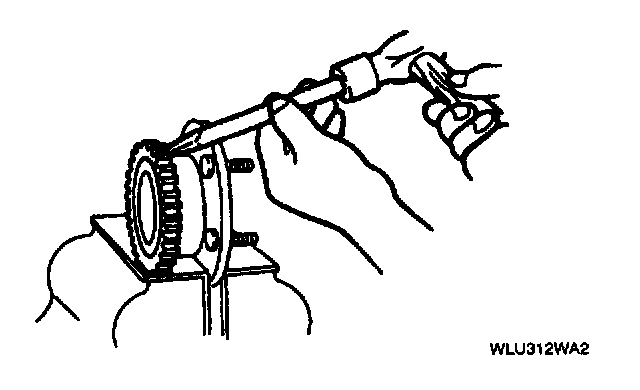

^ Remove the sensor rotor by using a chisel.

ABS Sensor Rotor Installation Note

NOTE: The ABS sensor rotor can be installed in either direction.

1. Install a new rear ABS sensor rotor onto the wheel hub.





2. Using a steel plate and the SST, press the rotor on until it is flush with the wheel hub.
