Headlamp: Adjustments

HEADLIGHT ADJUSTMENT

Vertical-horizontal Aiming Method
1. Adjust the tire air pressure to the specification.
2. Fill the fuel tank and remove excess cargo.

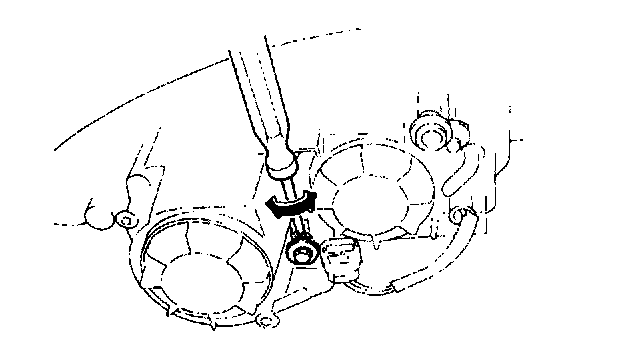

3. Position the unloaded vehicle on a flat, level surface.

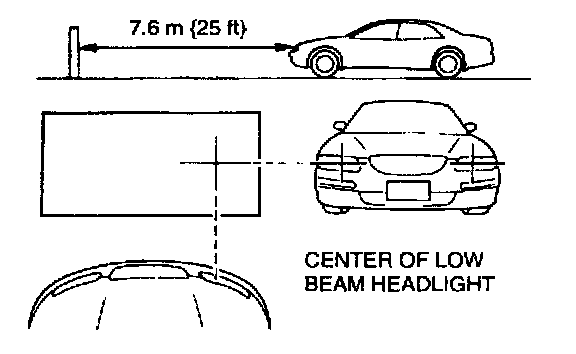

4. Position the vehicle straight ahead and perpendicularly to a wall. Set the headlights 7.6 m (25 ft) from the wall.







5. While adjusting one headlight, disconnect the connector of the other one.

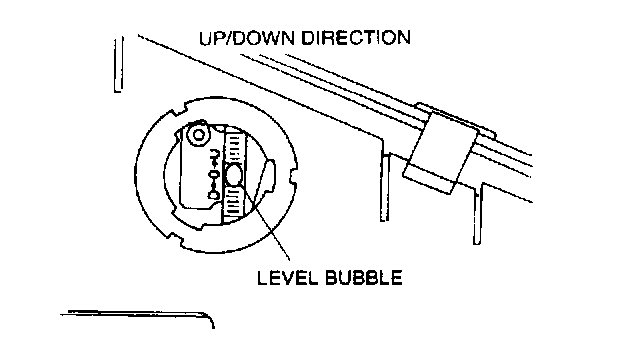

6. Adjust the up/down position of the headlight by using the vertical aiming gauge. Make sure the bubble in the gauge is within two lines on either side of the center "0".
