With 2.3L Engine

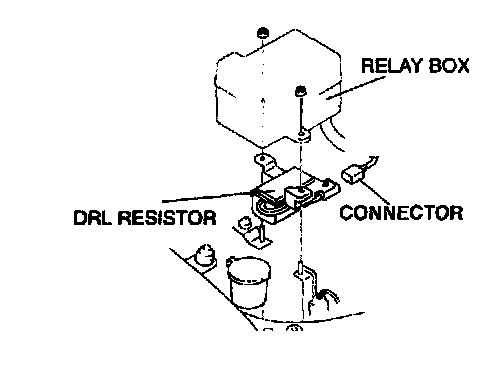

(DRL) DAYTIME RUNNING LIGHT REMOVAL/INSTALLATION WITH (KJ)2.3L




1. Disconnect the negative battery cable.
2. Lift up the relay box.
3. Disconnect the connector.
4. Remove the DRL resistor.
5. Install in the reverse order of removal.
