Center Mounted Brake Lamp: Service and Repair

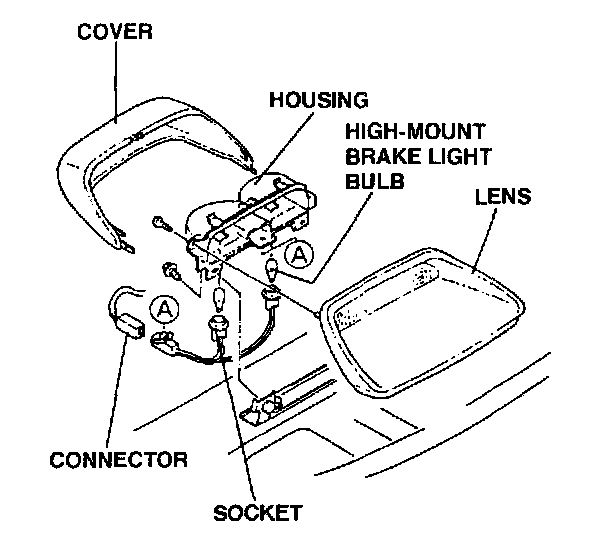

HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATIONCanada Only
1. Disconnect the negative battery cable.
2. Remove the cover.
3. Remove the socket.
4. Remove the high-mount brake light bulbs.
5. Disconnect the connector.
6. Remove the housing.
7. Remove the lens.
8. Install in the reverse order of removal.

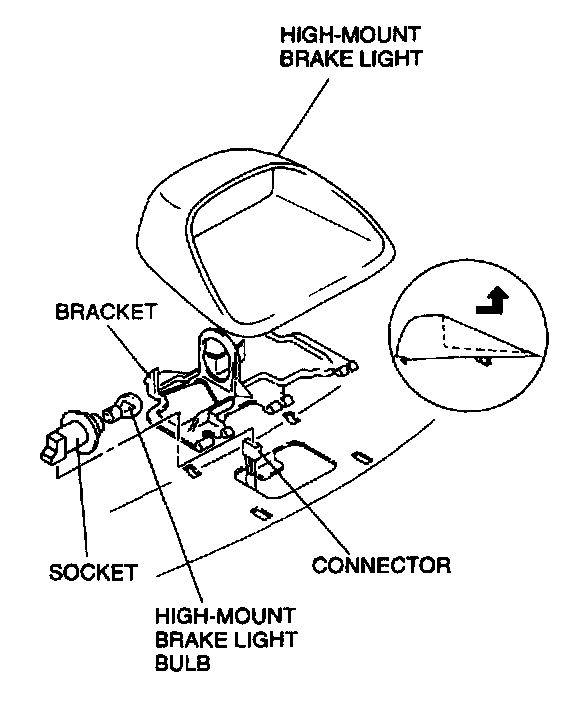

Except Canada
1. Disconnect the negative battery cable.
2. Remove the high-mount brake light.
3. Disconnect the connector.
4. Remove the bracket.
5. Remove the socket.
6. Remove the high-mount brake light bulb.
7. Install in the reverse order of removal.
