Blower Motor

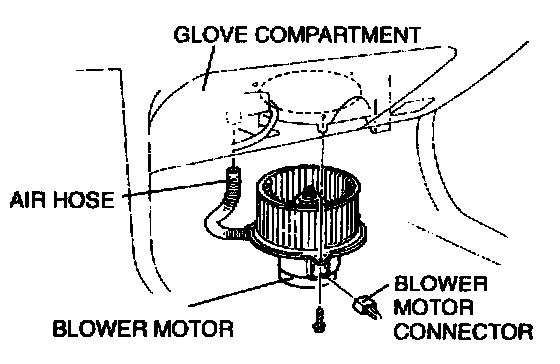

BLOWER MOTOR REMOVAL/INSTALLATION




1. Disconnect the negative battery cable.
2. Remove the under cover.
3. Disconnect the blower motor connector.
4. Remove the air hose.
5. Remove the three hex tapping screws and blower motor.
6. Install in the reverse order of removal.
