Oil Cooler: Service and Repair

OIL COOLER REMOVAL/INSTALLATION [KJ]
1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove the splash shield (Right-Hand).

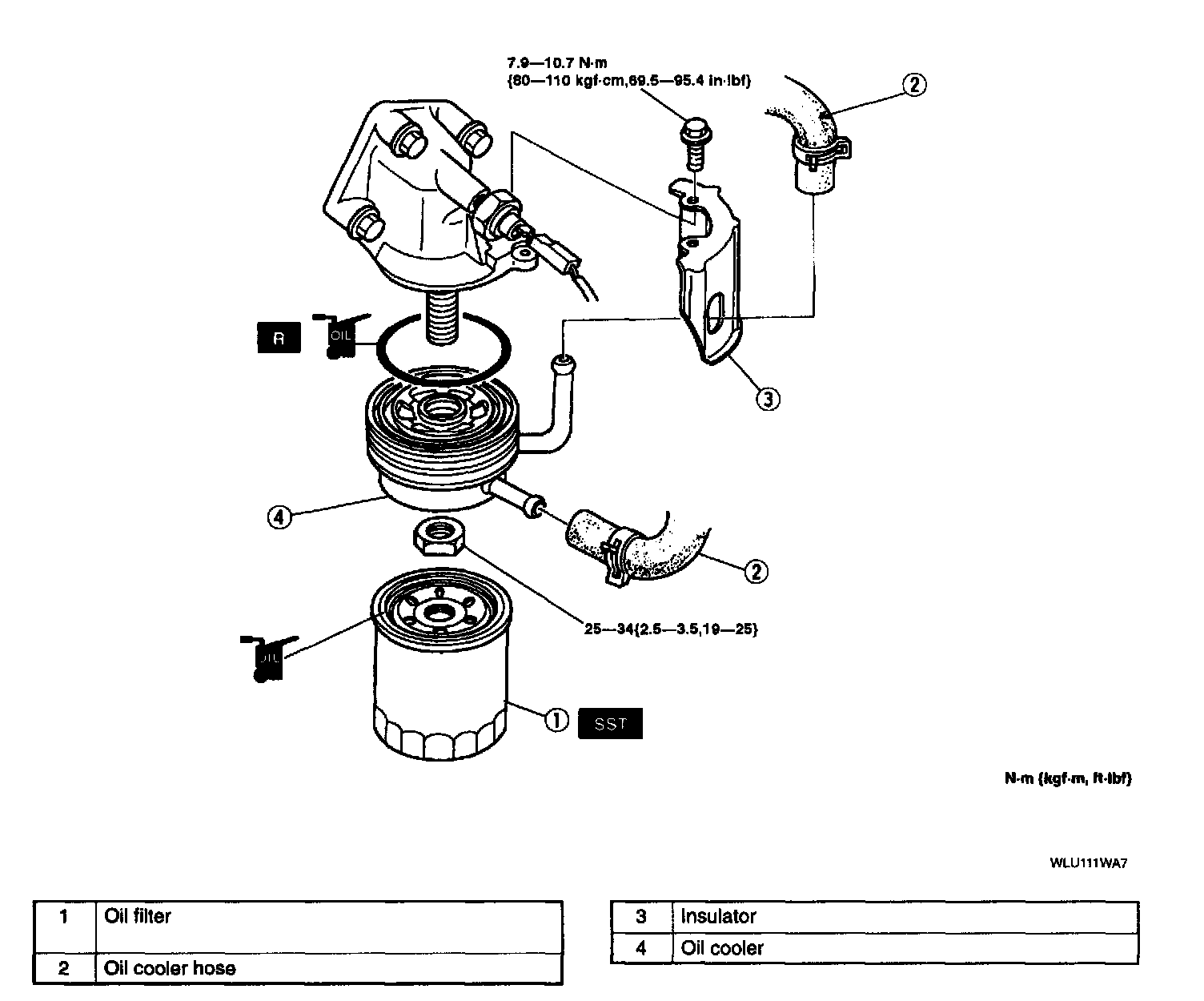

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Start the engine and check oil and coolant leaks.
