Temperature Gauge: Testing and Inspection

WATER TEMPERATURE GAUGE INSPECTION

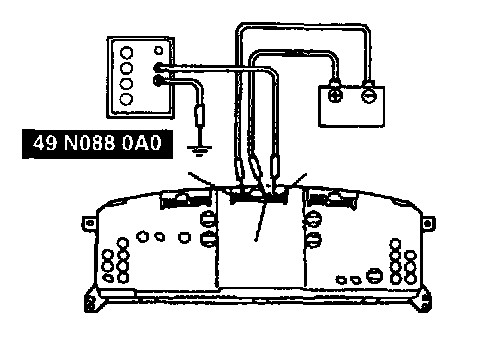

1. Remove the instrument cluster.
2. Connect battery positive voltage to terminal 2G and ground to terminal 21 of the instrument cluster.




3. Connect the positive lead of the SST (Fuel & Thermometer Checker) to terminal 2E of the instrument cluster and ground to the negative lead.

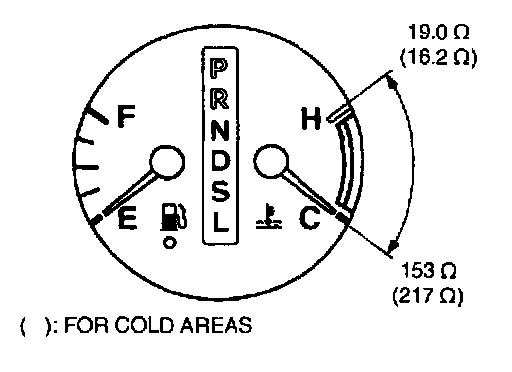

4. Verify that the gauge indicates the values shown in the figure.
5. If not as specified, replace the fuel and water temperature gauges.
