Windshield Washer Motor: Service and Repair

WINDSHIELD WASHER MOTOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the windshield washer tank.

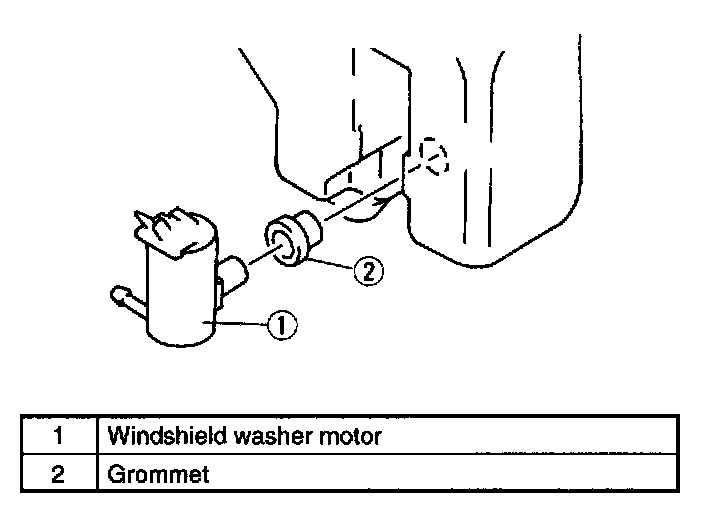

Except Canada/Canadian Models With ABS:

Except Canada/Canadian Models Without ABS:

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
