Seals and Gaskets: Service and Repair

OIL SEAL (REAR) REPLACEMENT
1. Raise the vehicle and support it with safety stands.
2. Remove the propeller shaft.
3. Remove the oil seal from the extension housing.
4. Apply the specified oil to a new oil seal.

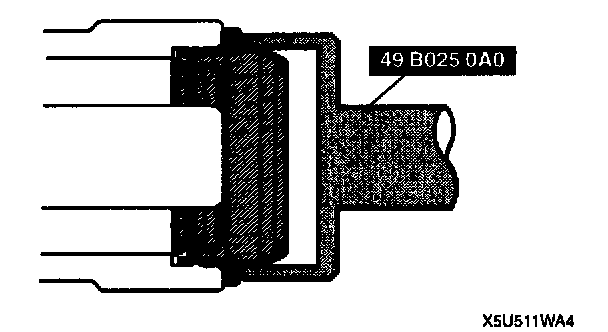

5. Install the new oil seal by using the SST.
6. Install the propeller shaft.
7. Inspect the oil level.
