Diagnosis By Symptom

SYMPTOM TROUBLESHOOTING

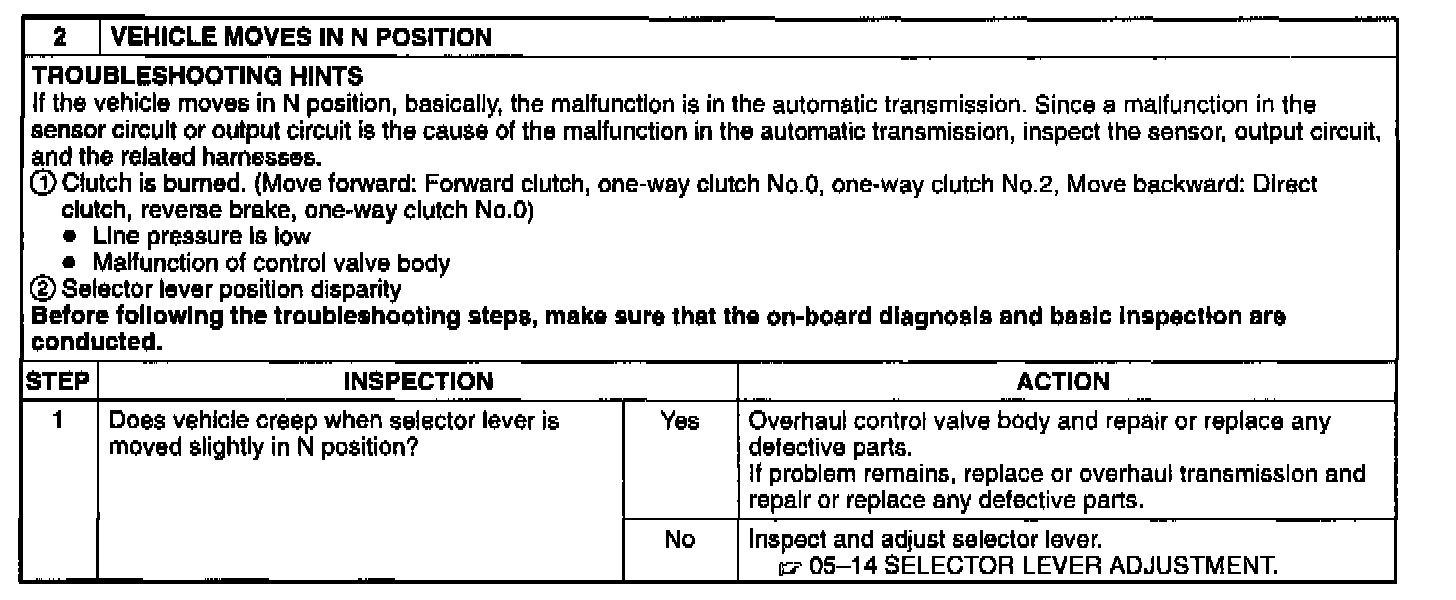

Vehicle Moves In N Position

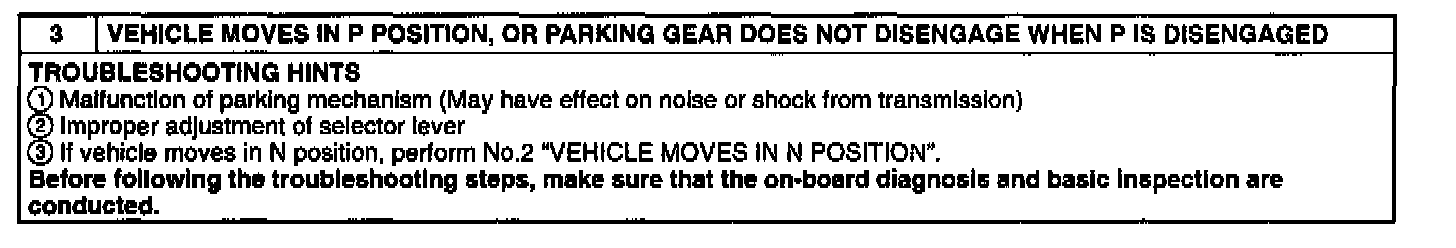

Vehicle Moves In P Position, Park Gear Inoperative

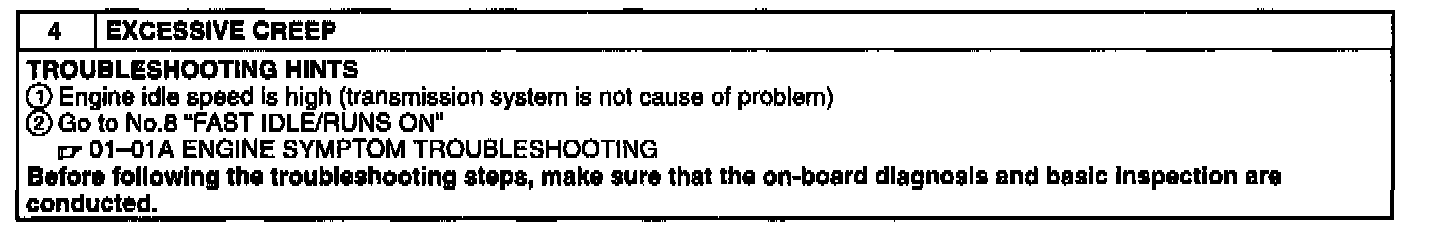

Excessive Creep

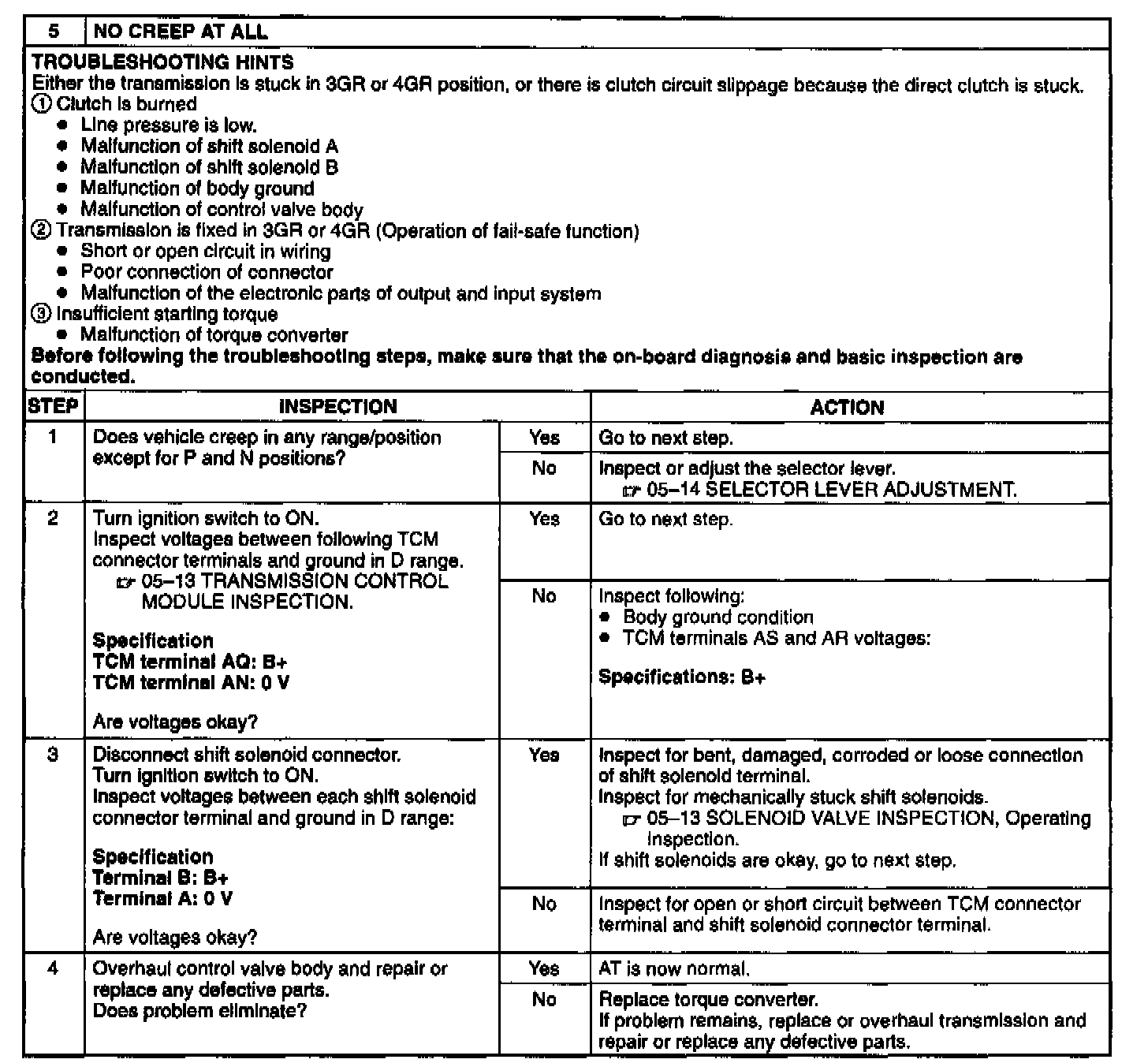

No Creep At All

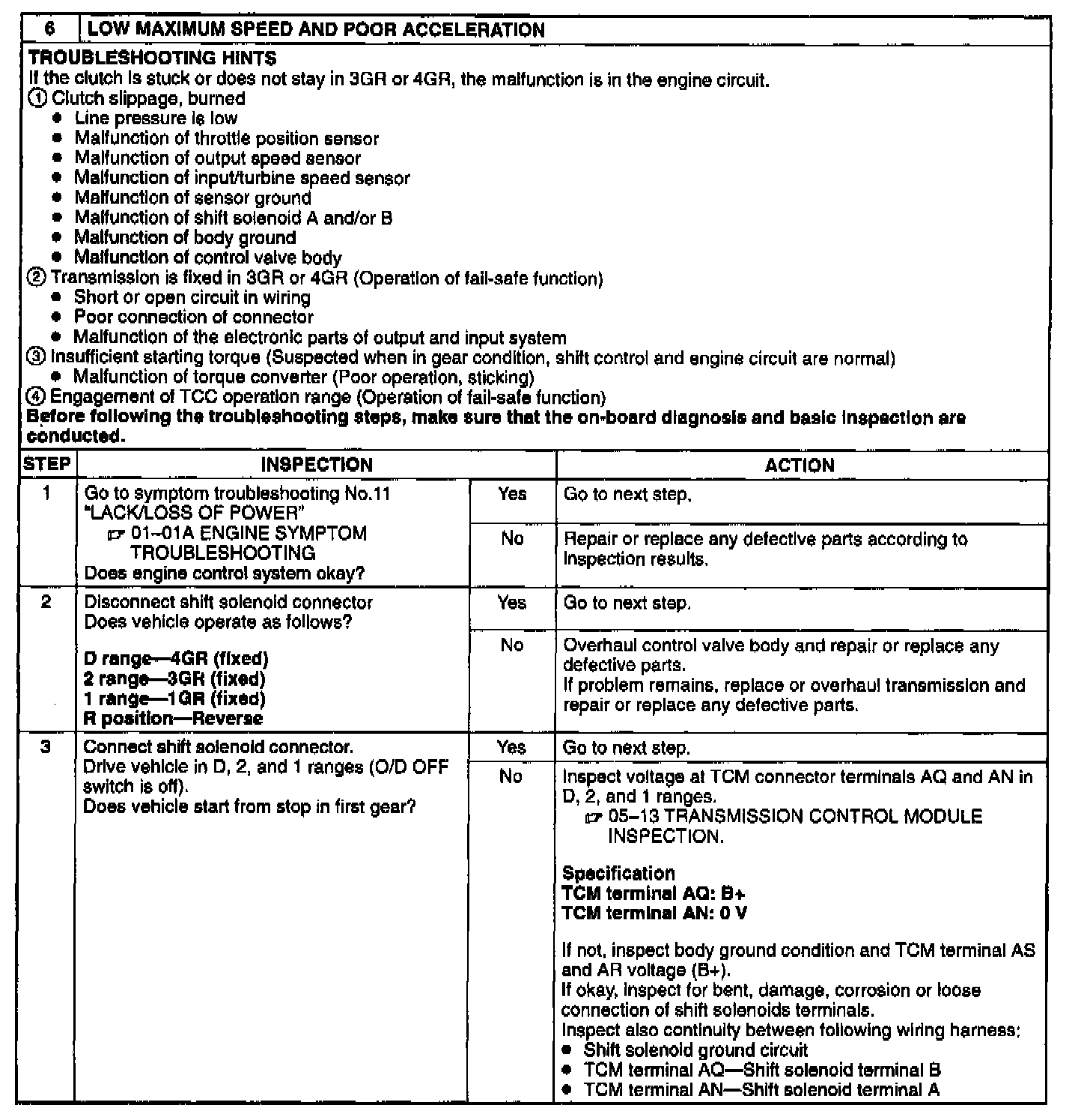

Low Maximum Speed And Poor Acceleration (1)





Low Maximum Speed And Poor Acceleration (2)

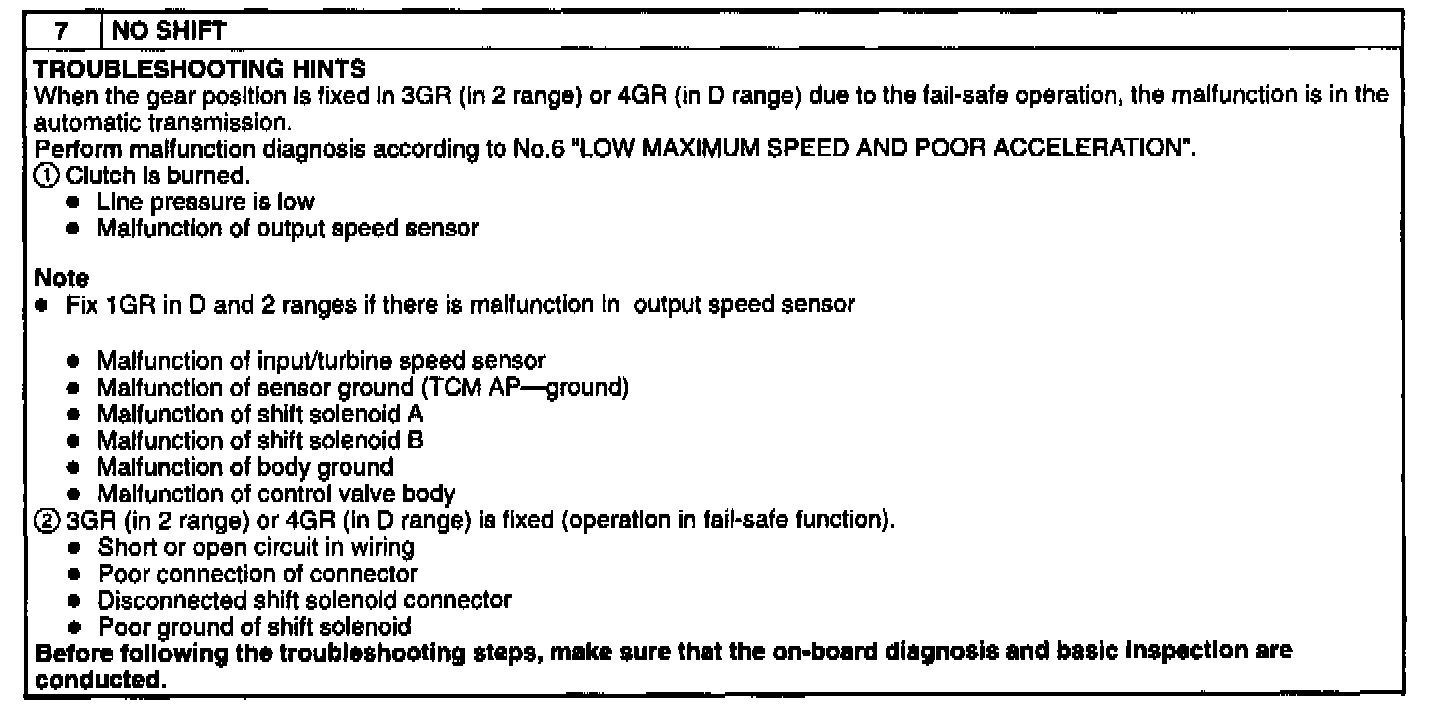

No Shift

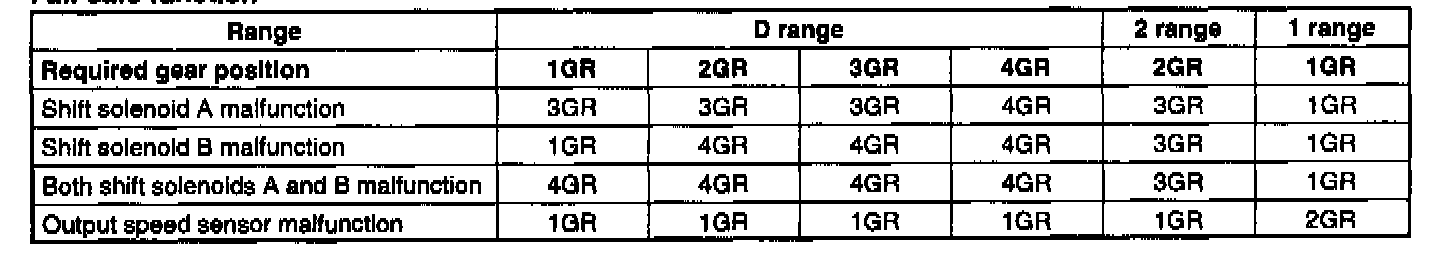

Fail-safe function

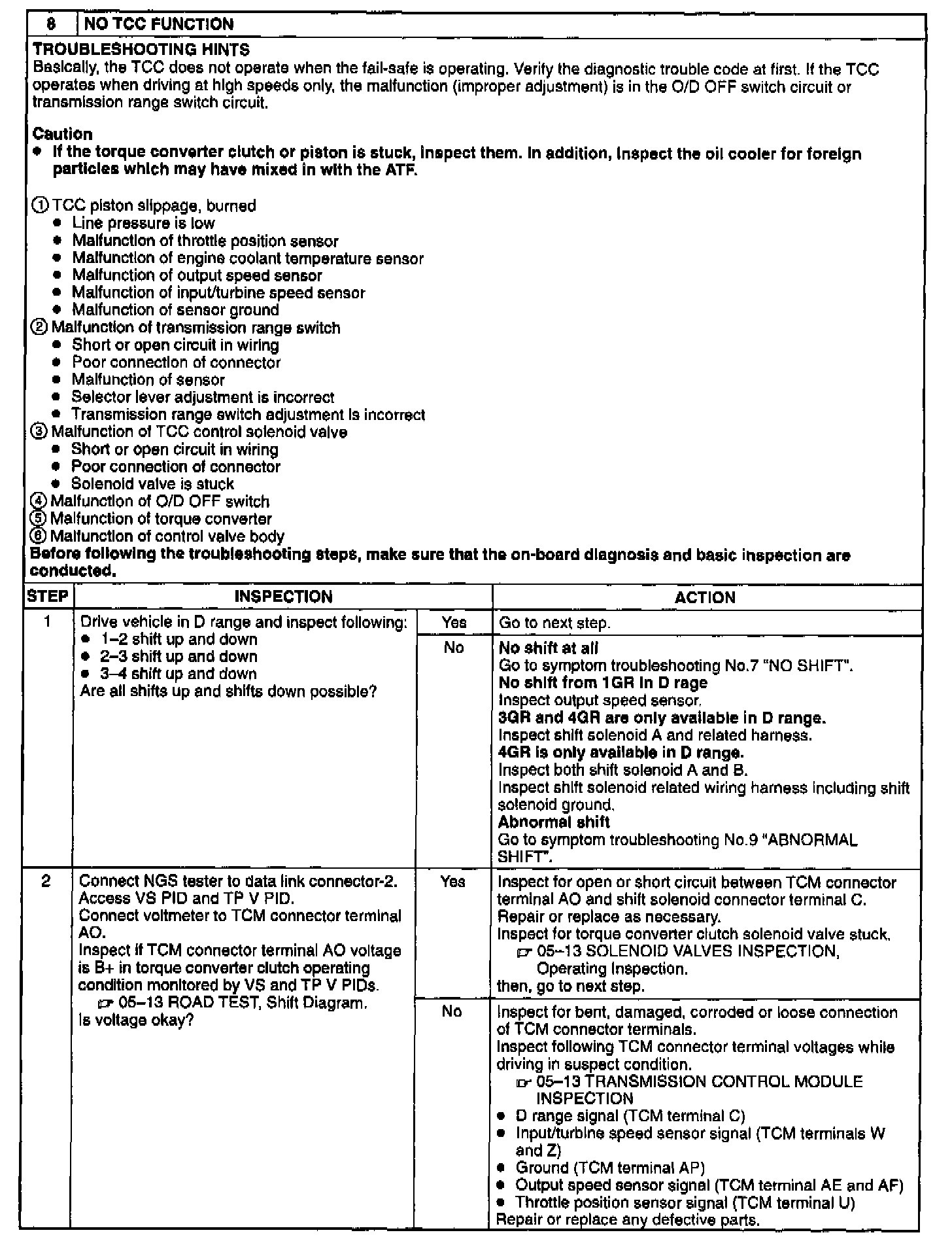

No TCC Function (1)





No TCC Function (2)





Abnormal Shift

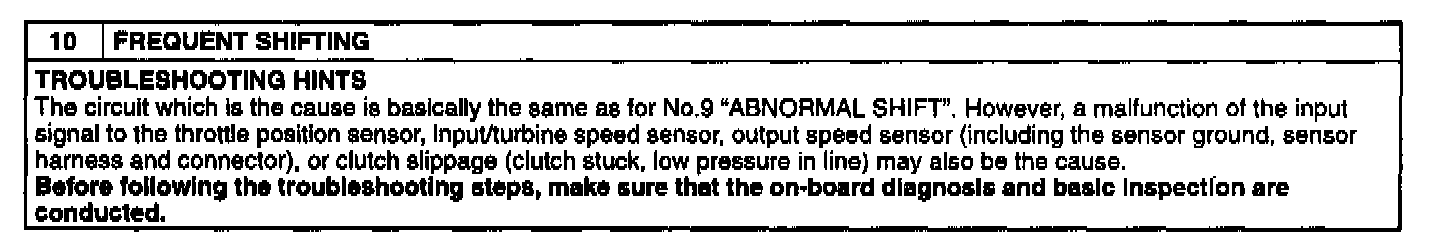

Frequent Shifts

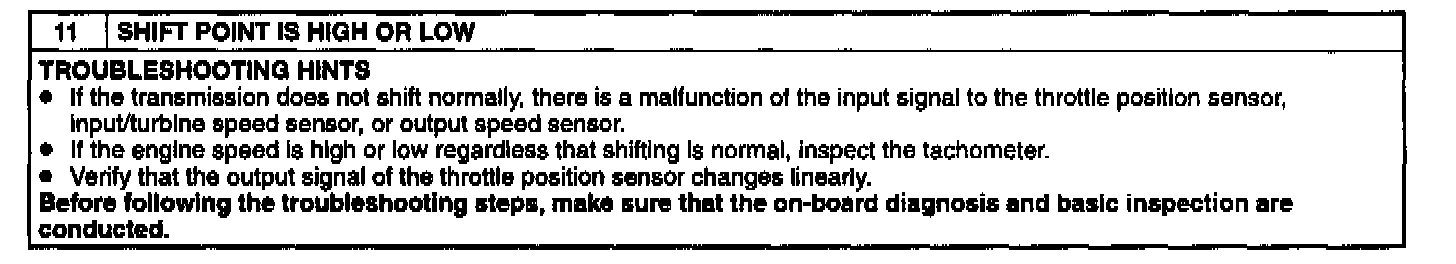

Shift Point Is High Or Low





No Kickdown

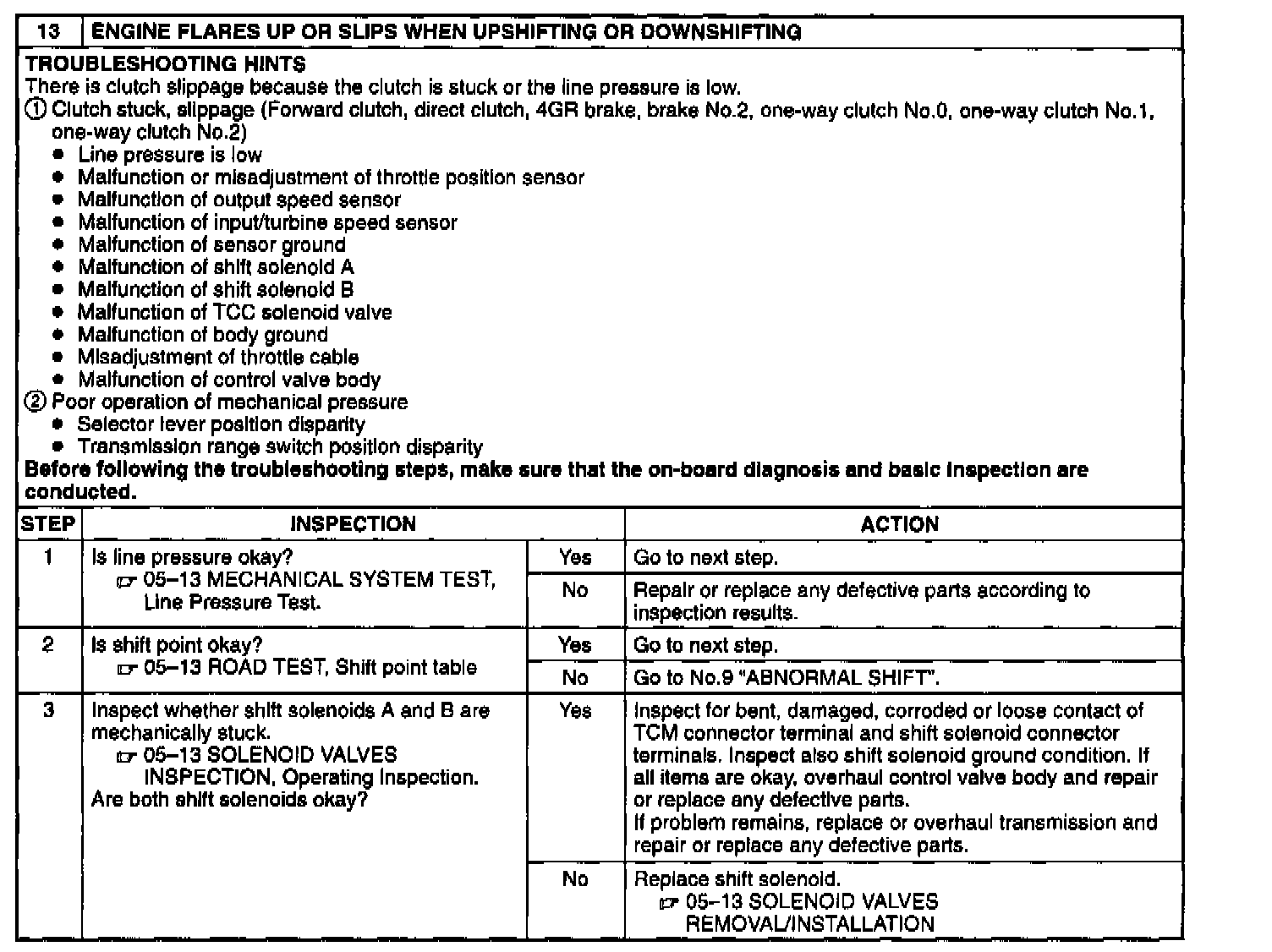

Engine Races Or Slips When Shifting Up Or Down

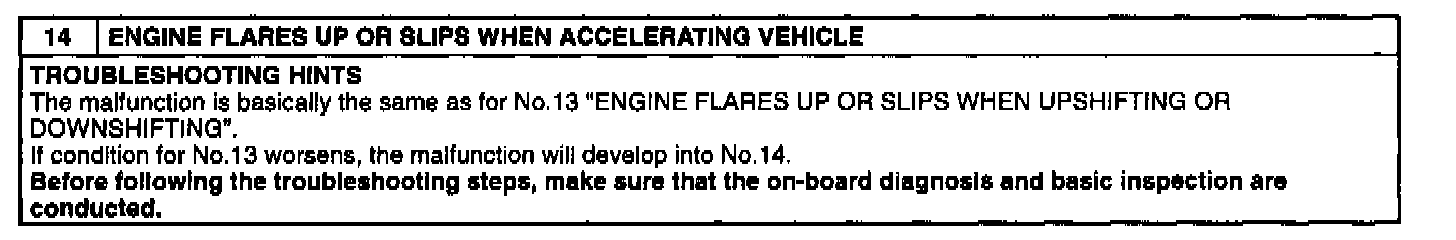

Engine Races Or Slips When Accelerating

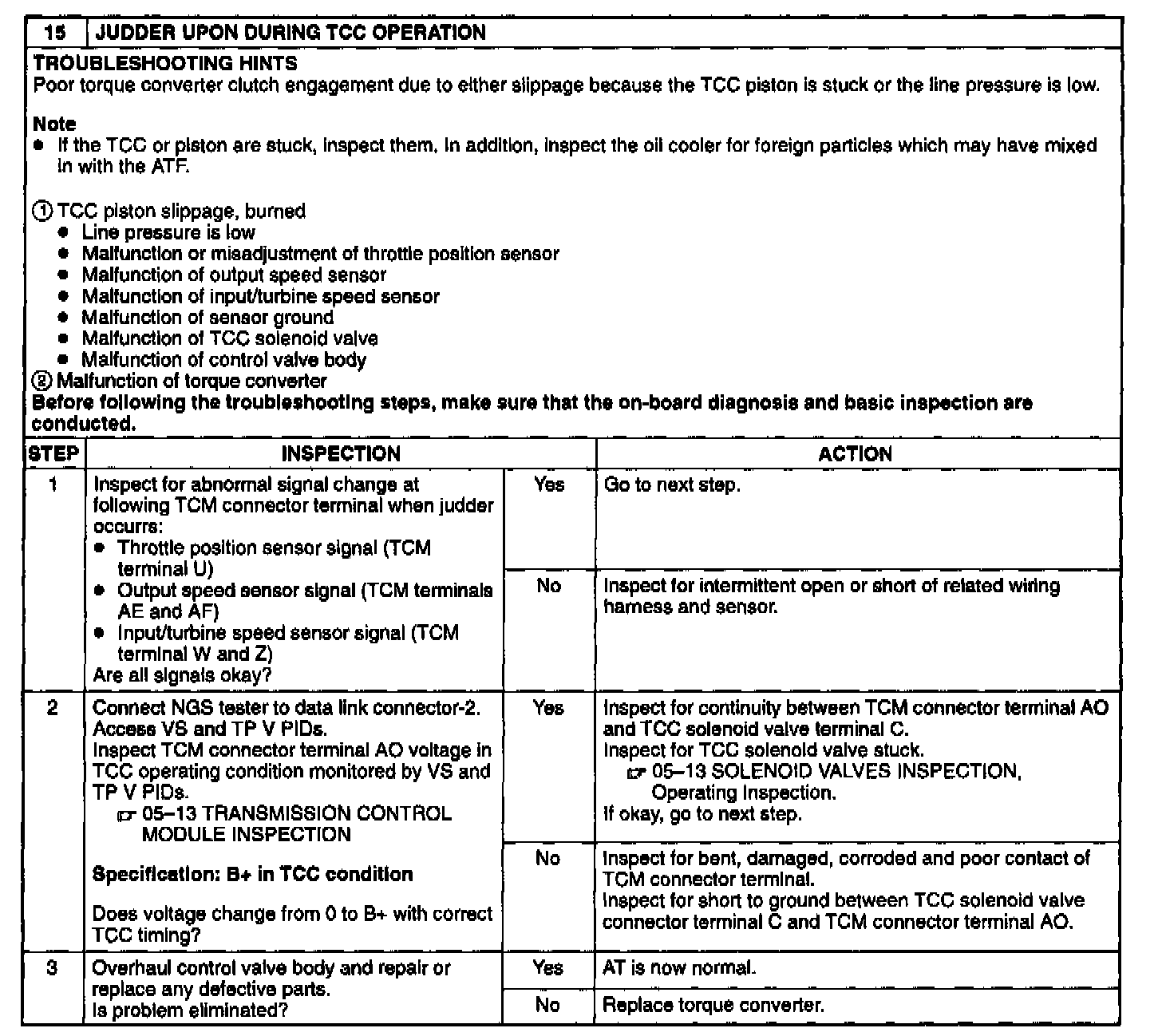

Judder Upon TCC Operation





Excessive N to D or N to R Position Range Shift Shock

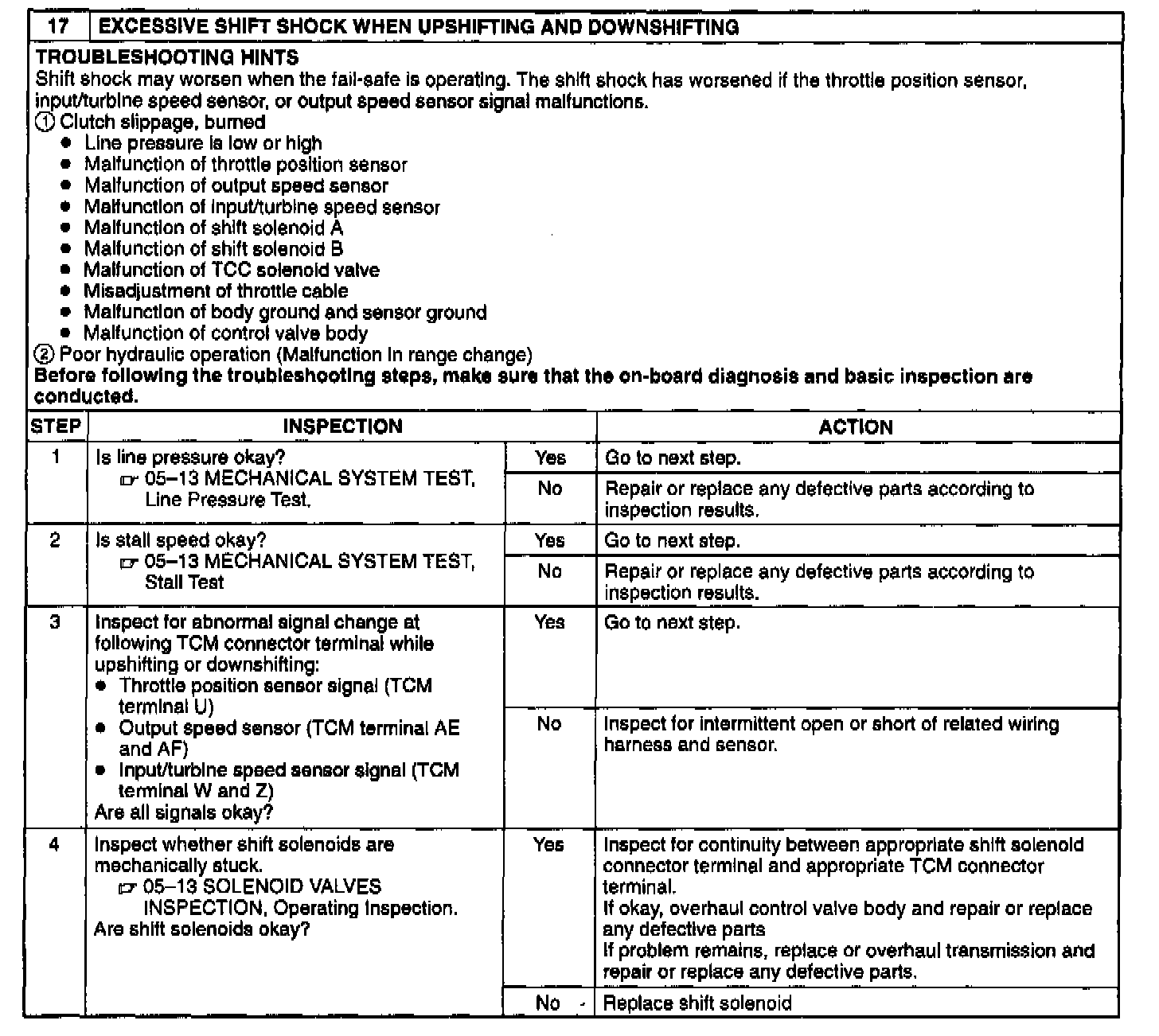

Excessive Shift Shock On Upshifts Or Downshifts

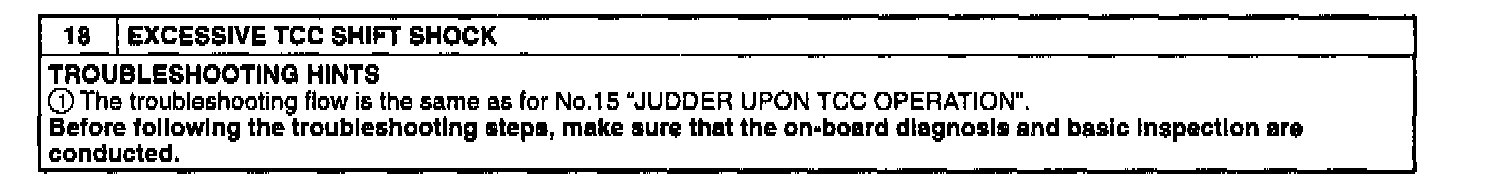

Excessive TCC Shift Shock

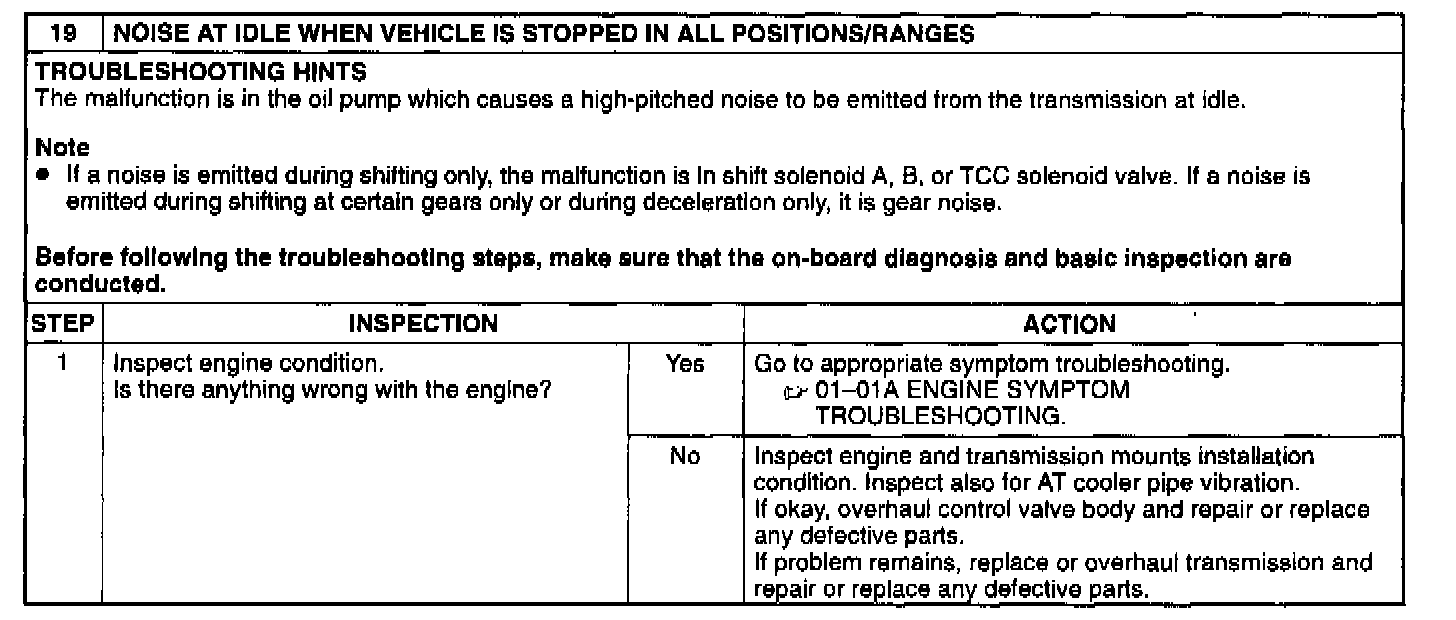

Noise At Idle When Vehicle Is Stopped In All Positions/Ranges

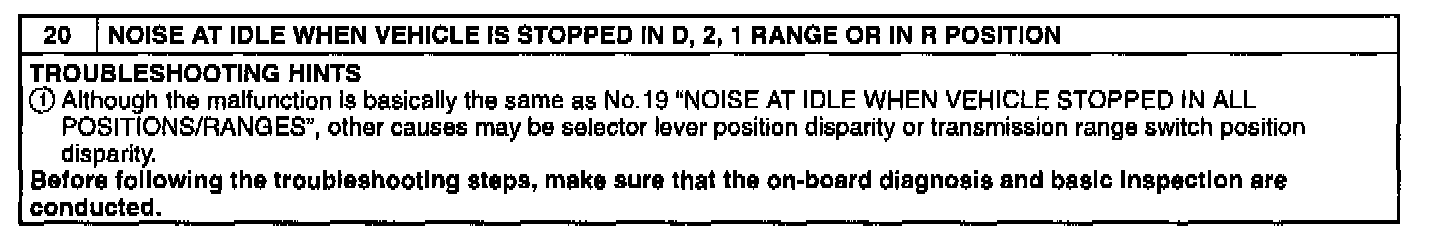

Noise At Idle When Vehicle Is Stopped In D,2,1 Or In R Position

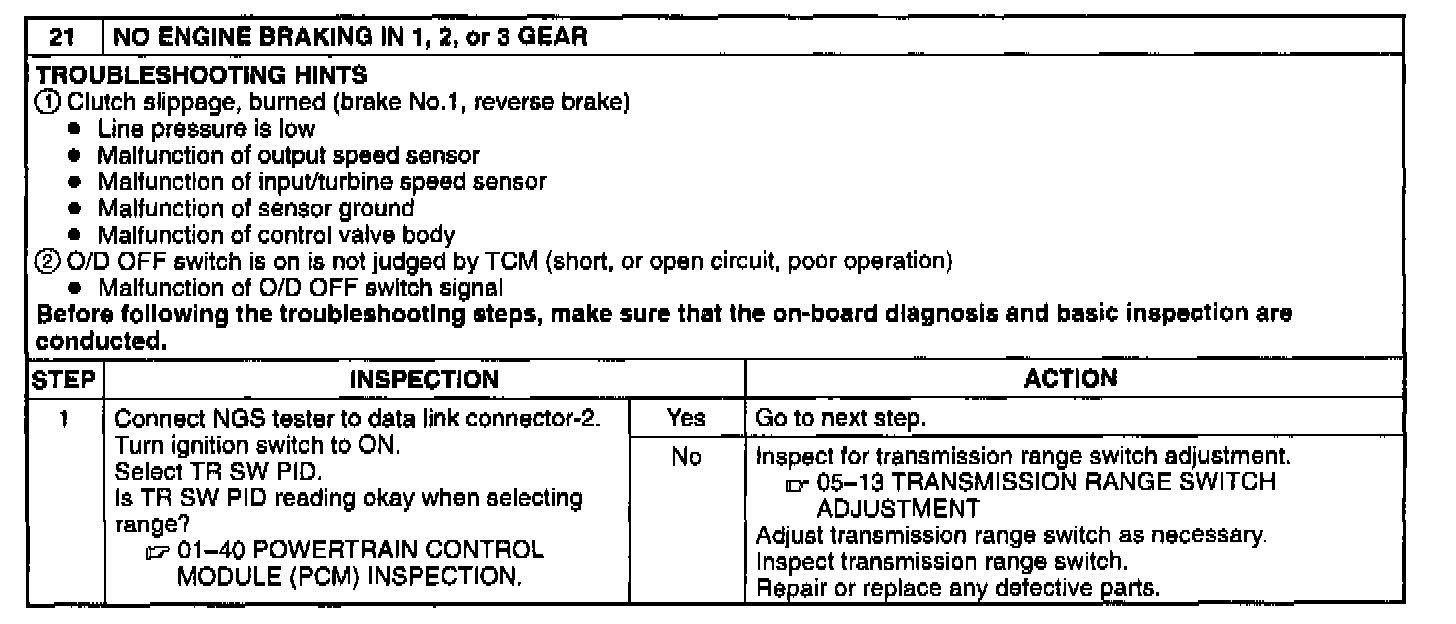

No Engine Braking In 1,2,or 3 Gear (1)





No Engine Braking In 1,2,or 3 Gear (2)

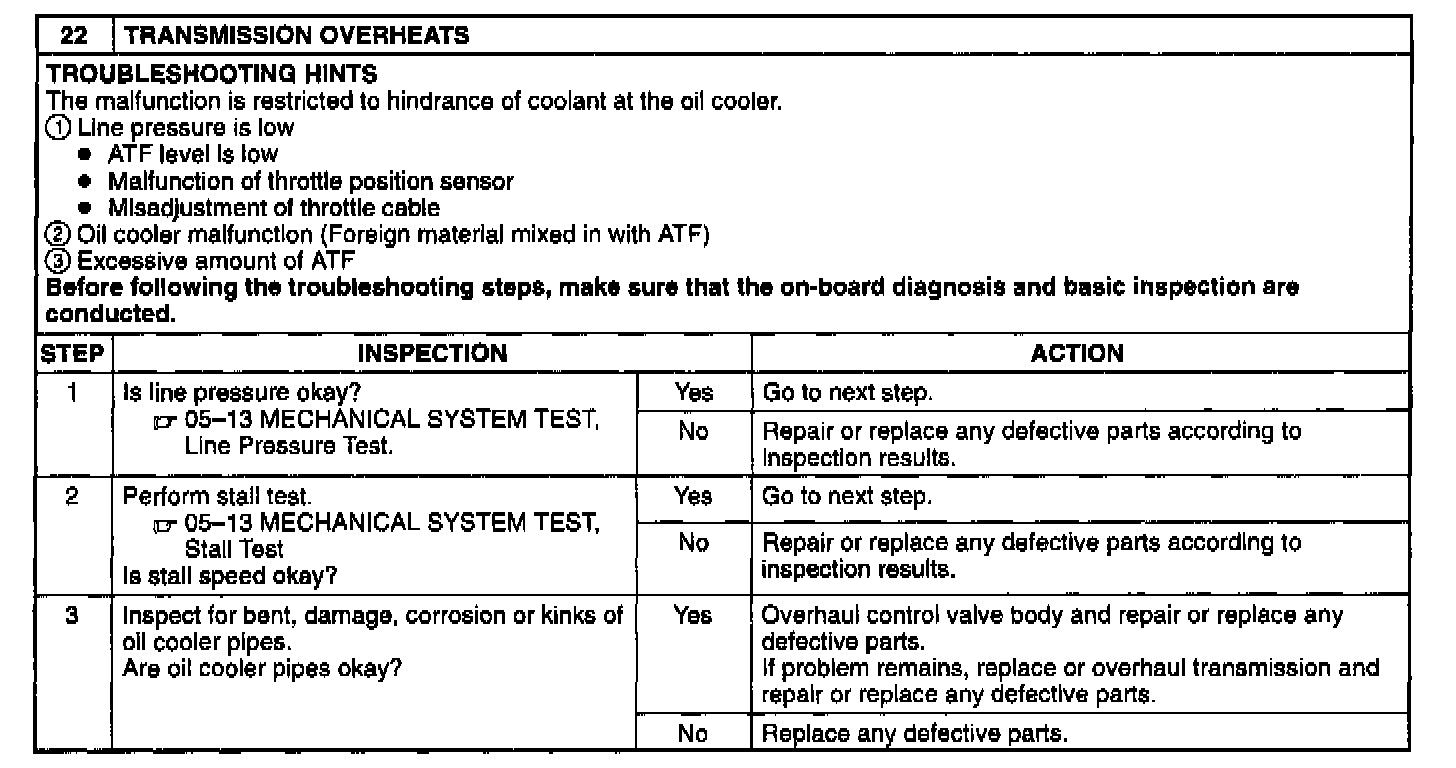

Transmission Overheats

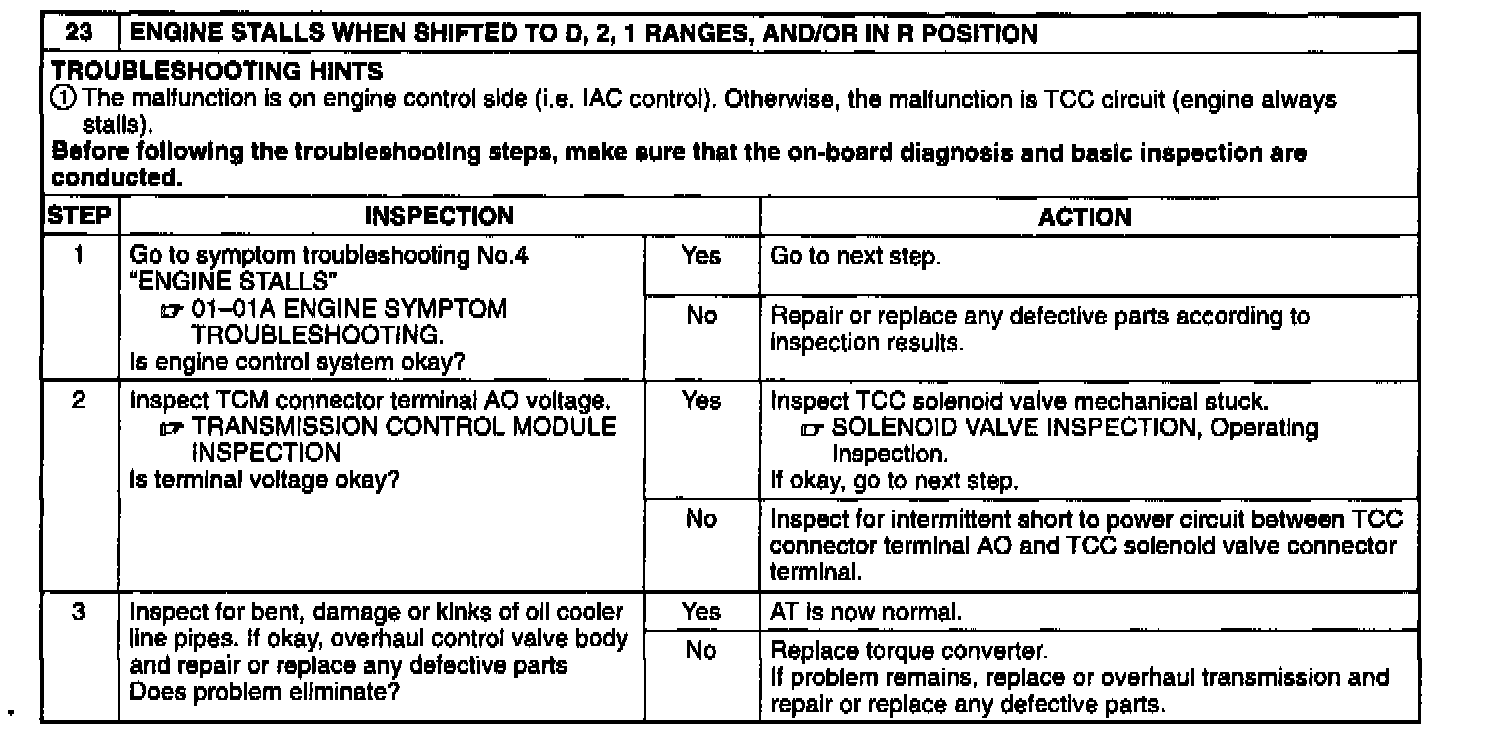

Engine Stalls When Shifted Into Any Gear





Engine Stalls When Driving At Slow Speeds Or Stopping

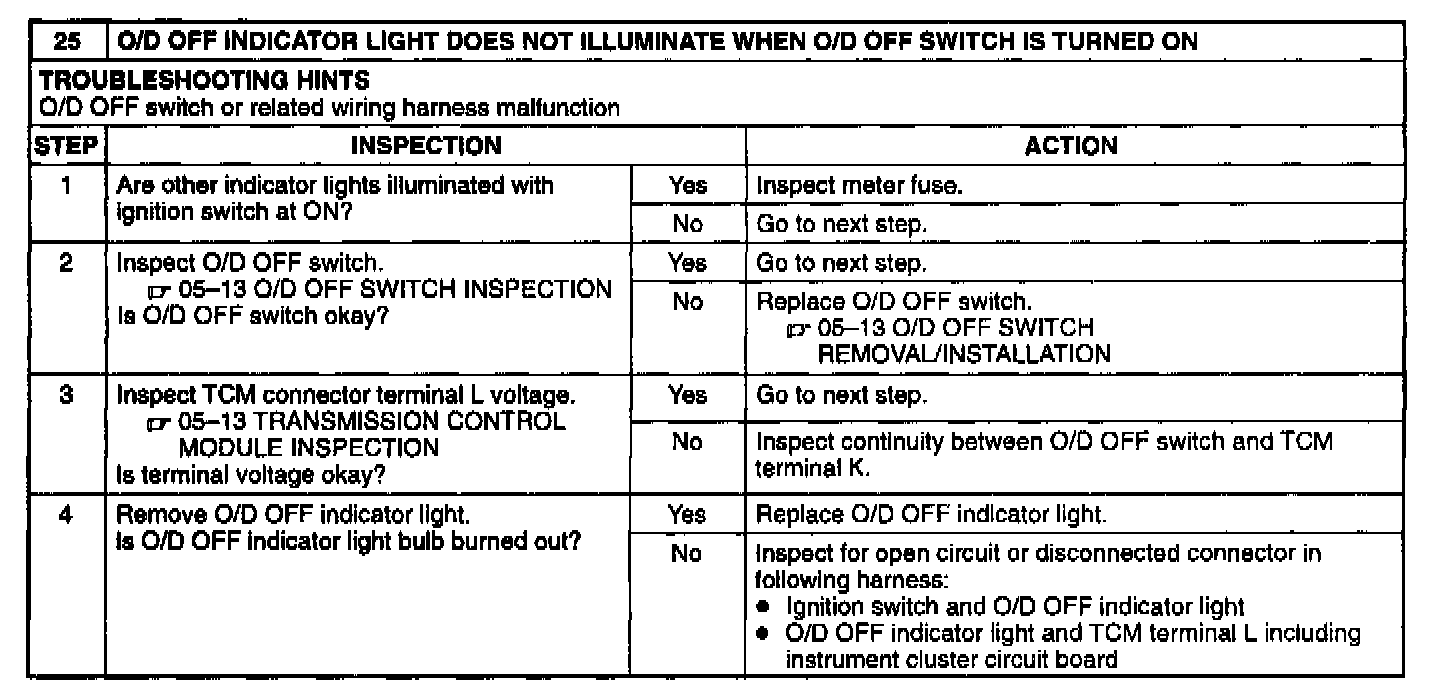

O/D Indicator Light Inoperative When Switch Is Turned On

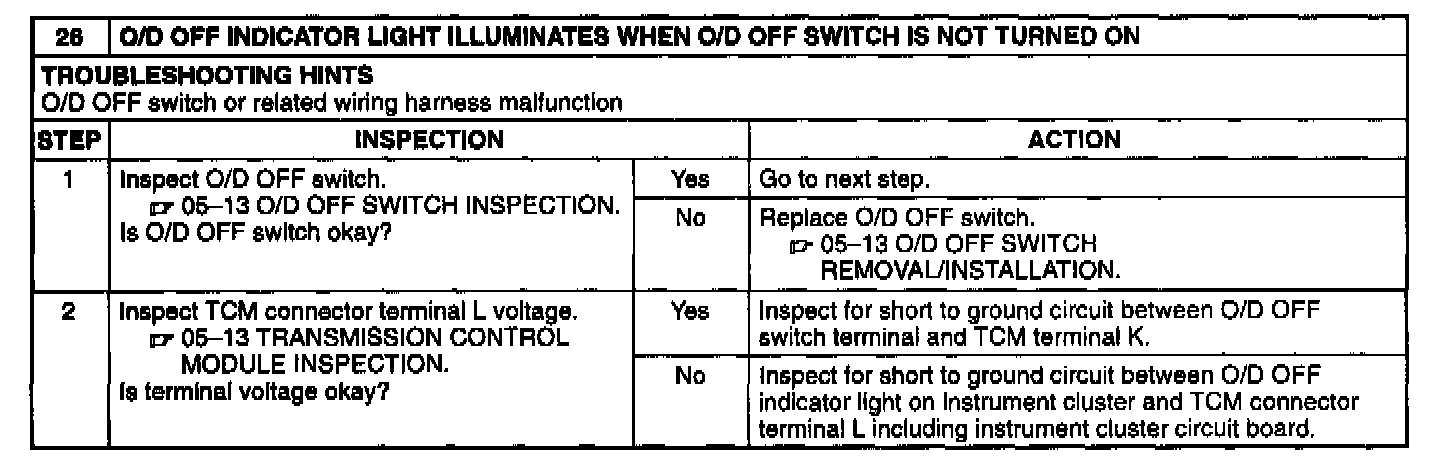

O/D Indicator Light Illuminates When Switch Is Not Turned On


Note: If the malfunction remains even though all inspections have been performed, get assistance from technical hotline/your distributors.
