Console Hole Cover - Does Not Fit Flush
Bulletin No. 013/98Issued 06/19/98
Revised
Category
S (09)
Applicable Model/s
1999 Miata W/0 Power Windows
Subject
CONSOLE HOLE COVER DOES NOT FIT FLUSH
APPLICABLE MODEL(S)/VINS
1999 Miatas without power windows having VINs/manufacturer dates lower than JM1 NB353*X0 111110 / March 12, 1998.
DESCRIPTION
The hole cover used in place of the power window switches does not fit flush with the console surface.
Customers complaining of this concern should have their vehicle inspected and repaired using the following procedure.
REPAIR PROCEDURE
1. Verify customer complaint.
2. Remove the existing hole cover. Refer to section 9 of the Workshop Manual.

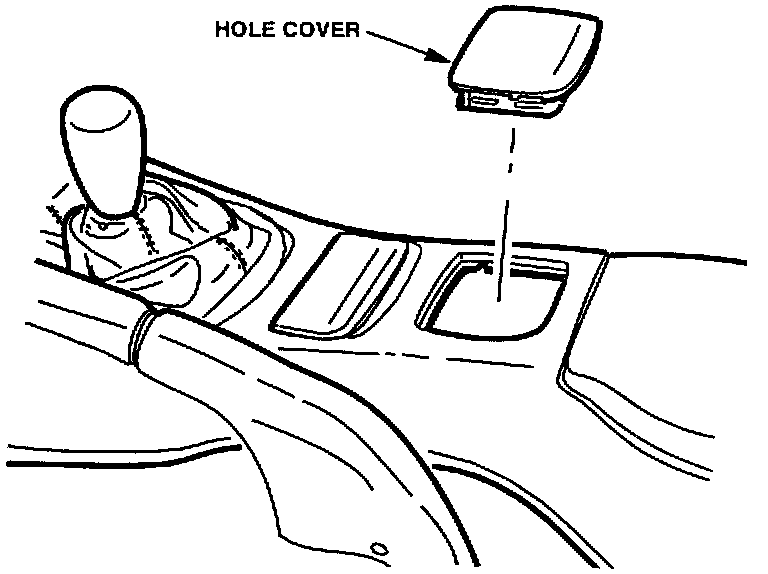

3. Install a new hole cover by aligning the cover tabs with the hole and pressing into place until click is heard.
Note
^ Be sure to evenly press the four corners of the cover at the same time.
4. Verify the repair
PART(S) INFORMATION
Part Number Description Qty.
NC10-55-225B-02 Cover, Hole 1
WARRANTY INFORMATION
Note
^ This information applies to verified customer complaints on vehicles covered under normal warranty.
Warranty Type A
Symptom Code 89
Damage Code 9G
Part Number Main Cause NC10-55-225B-02
Quantity 1
Operation Number XX013X-R-X
Labor Hours 0.2
