Front

REMOVAL/INSTALLATION


Caution:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle aide) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.

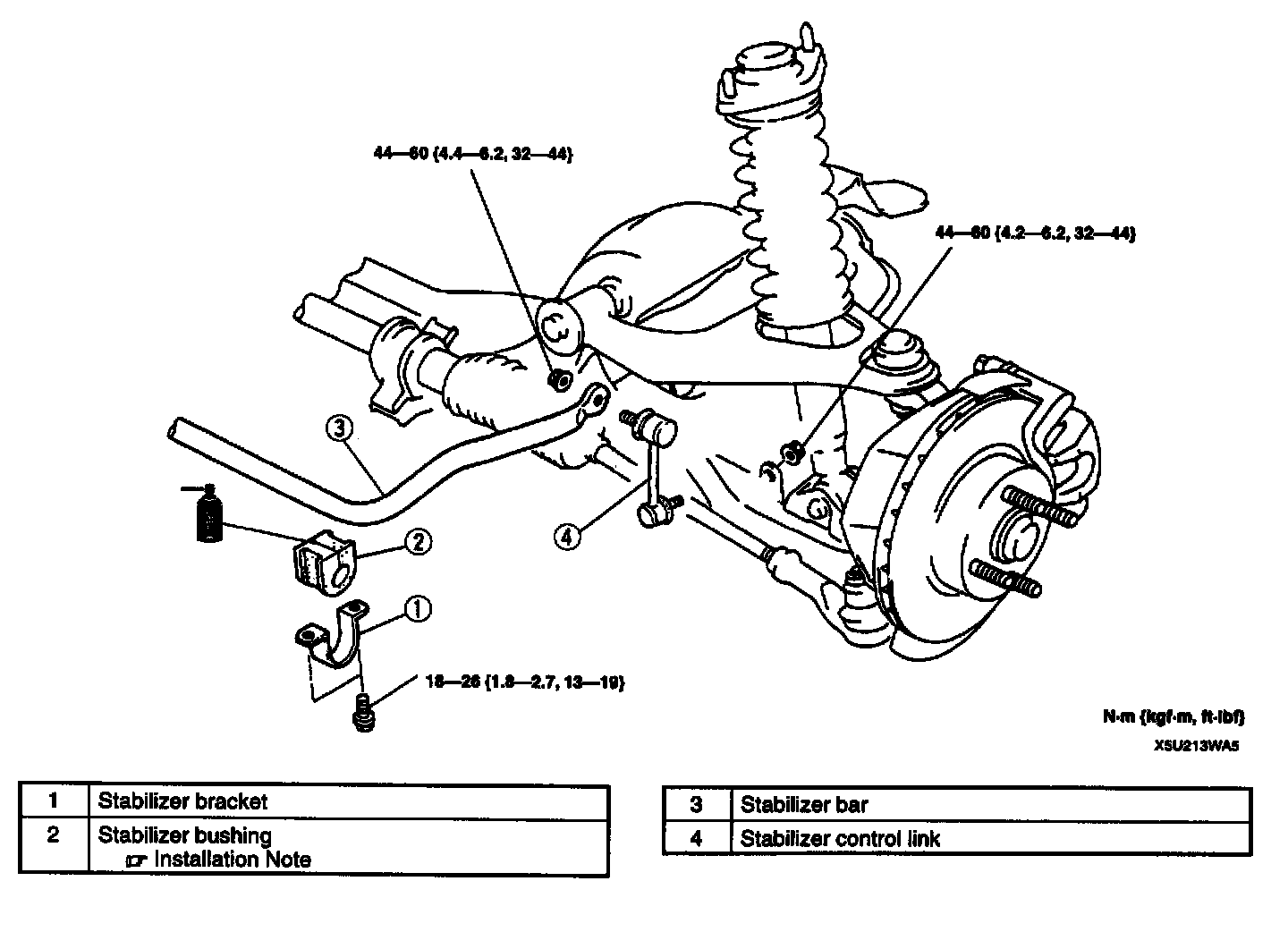

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

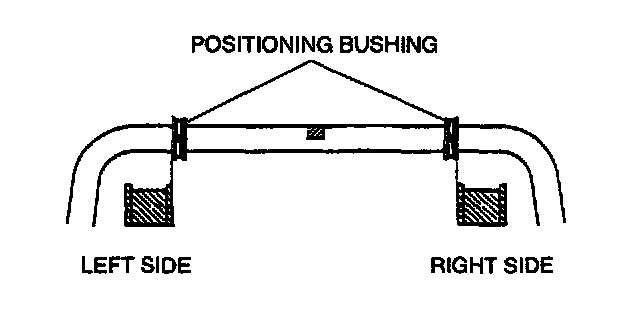

Stabilizer Bushing Installation Note





- Align the bushing with the positioning bushing on the stabilizer.

Stabilizer Control Link Inspection
1. Remove the stabilizer control link from the vehicle.
2. Inspect for bending and damage.

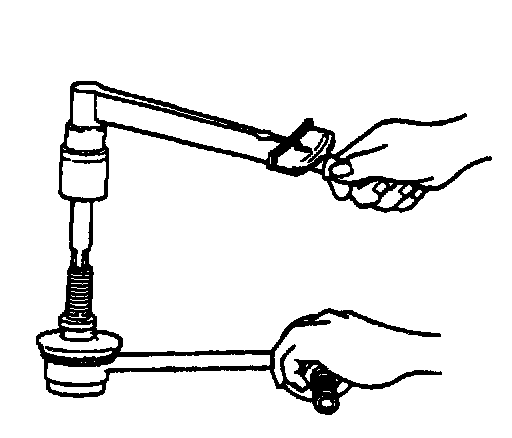

3. Measure the ball joint starting torque.
1) Rock the ball joint stud side to side 10 times.
2) Rotate the ball joint stud 10 times.
3) Measure the starting torque by using a suitable Allen socket and a torque wrench.

Starting torque 0.14-2.7 Nm (1.4-27 kg-m, 1.3-23.4 inch lbs.)
