Rear Upper Arm

REMOVAL/INSTALLATION





Caution:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.

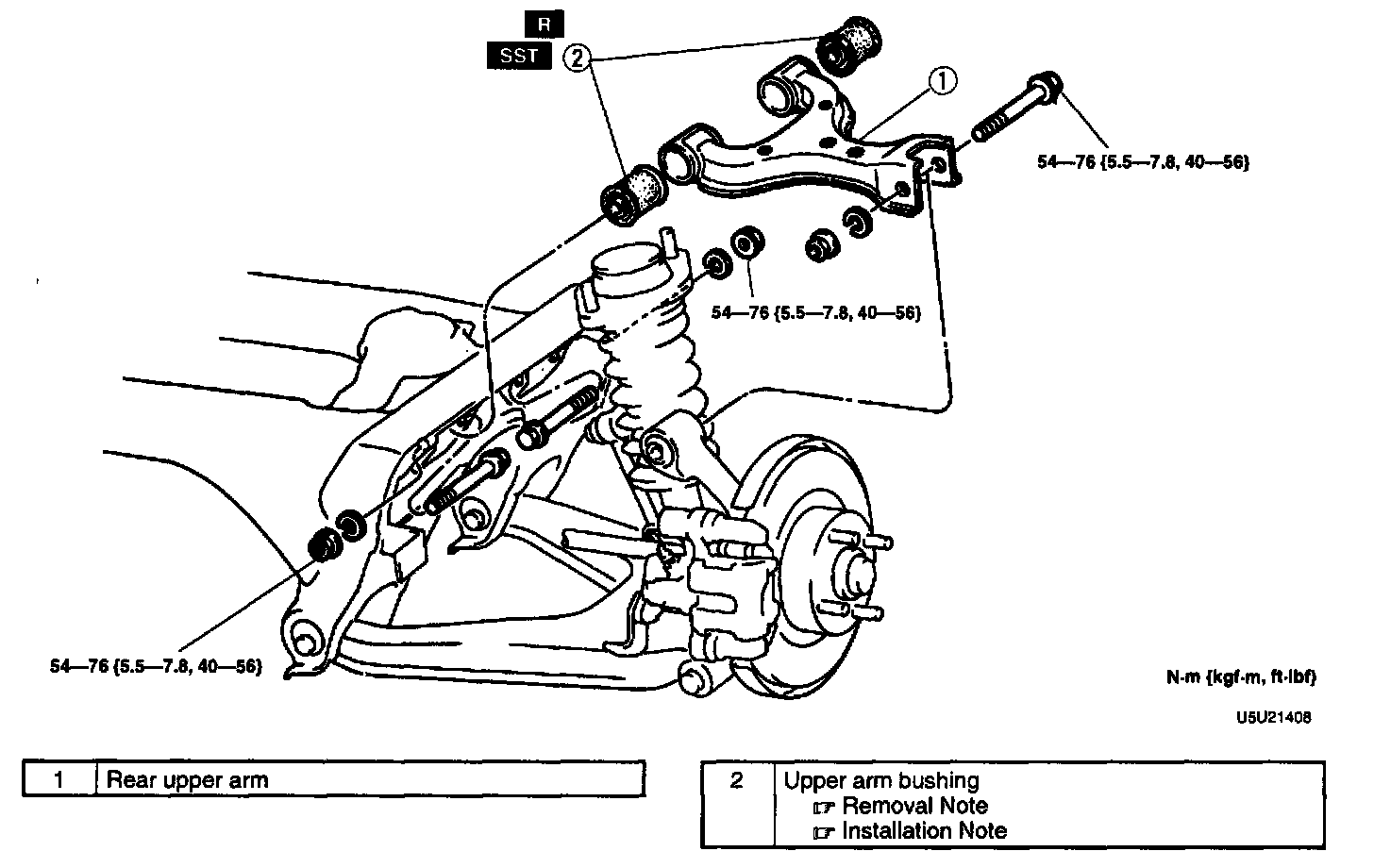

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Adjust the rear wheel alignment.

Upper Arm Bushing Removal Note

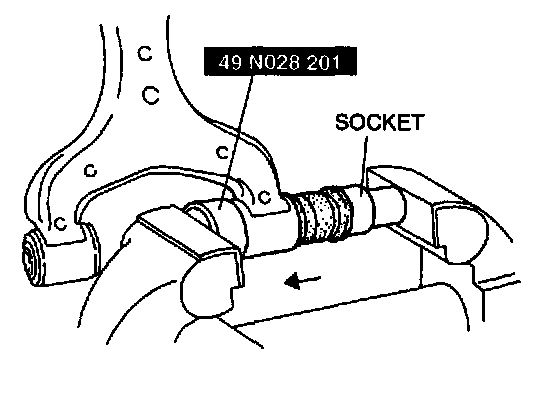

- Press the upper arm bushing out by using the SSTs and a socket as shown.

Upper Arm Bushing Installation Note
1. Apply soapy water to the upper arm bushing.

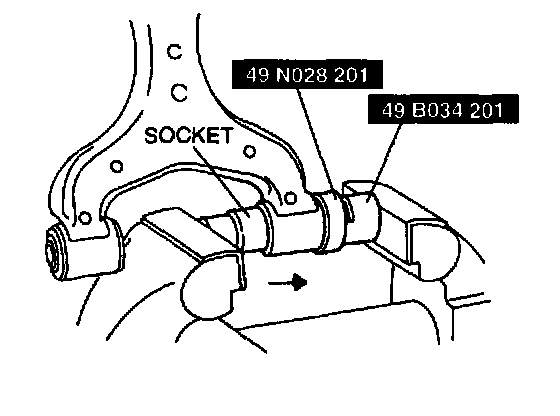

2. Press the bushing in by using the SST and a socket in the direction of the arrow.
