Rear Lower Arm

REAR LOWER ARM REMOVAL/INSTALLATION





Caution:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.

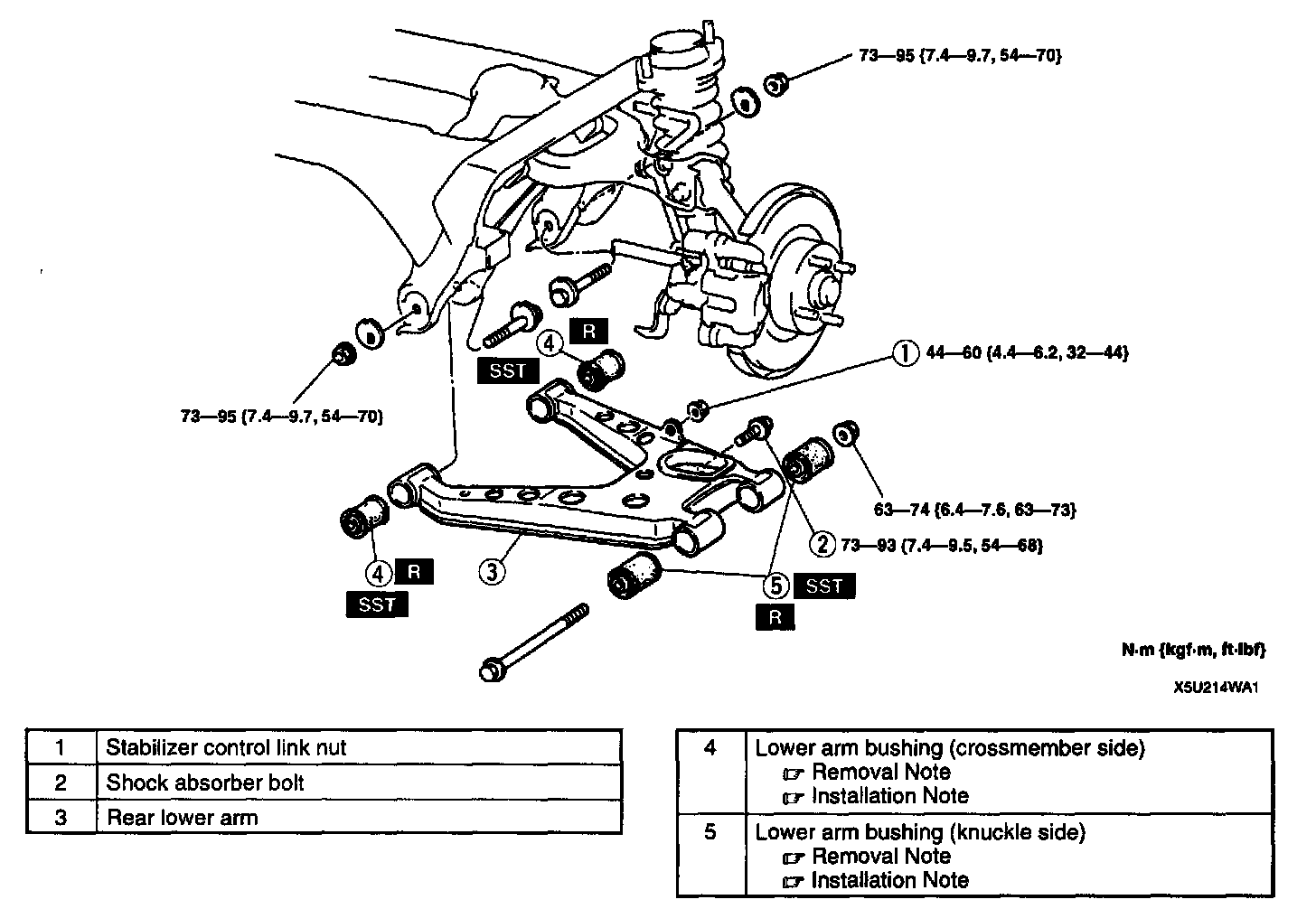

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Adjust the rear wheel alignment.

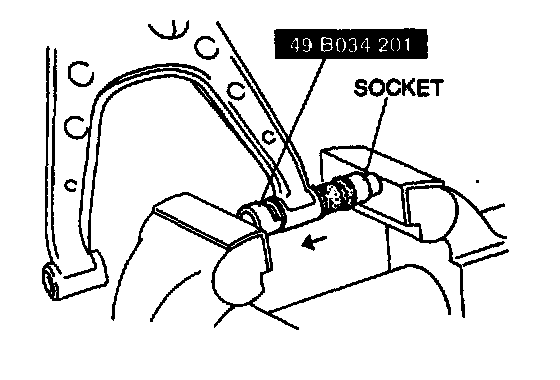

Lower Arm Bushing (Crossmember Side) Removal Note





- Press the lower arm bushing out by using the SSTs and a socket as shown.

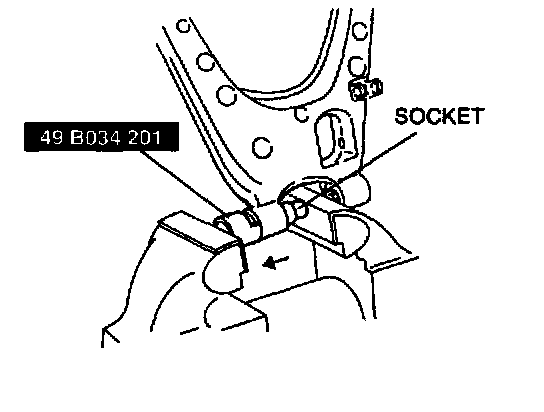

Lower Arm Bushing (Knuckle Side) Removal Note





- Press the lower arm bushing out by using the SST and a socket as shown.

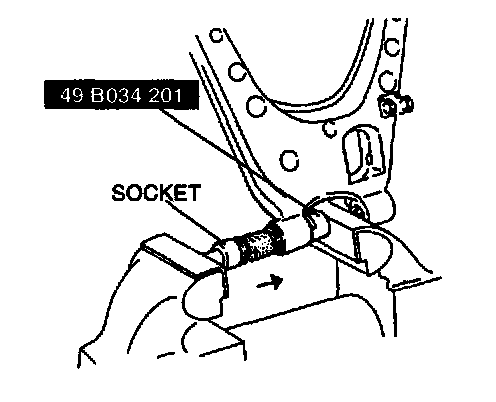

Lower Arm Bushing (Knuckle Side) Installation Note

Caution:
- Install the bushing with a white mark for the front side.

1. Apply soapy water to the lower arm bushing.





2. Press the bushing in by using the SST and a socket in the direction of the arrow.

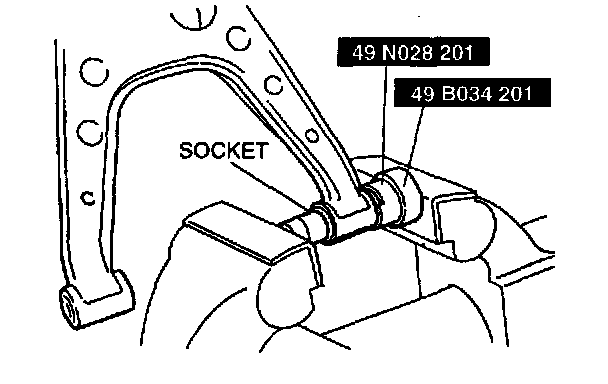

Lower Arm Bushing (Crossmember Side) Installation Note
1. Apply soapy water to the lower arm bushing.





2. Press the bushing in by using the SST and a socket in the direction of the arrow.
