Fluid Leakage Inspection

FLUID LEAKAGE INSPECTION





Caution:
- Never hold the steering wheel to the extreme left or right for more than five seconds with the engine running. This could damage the power steering pump.

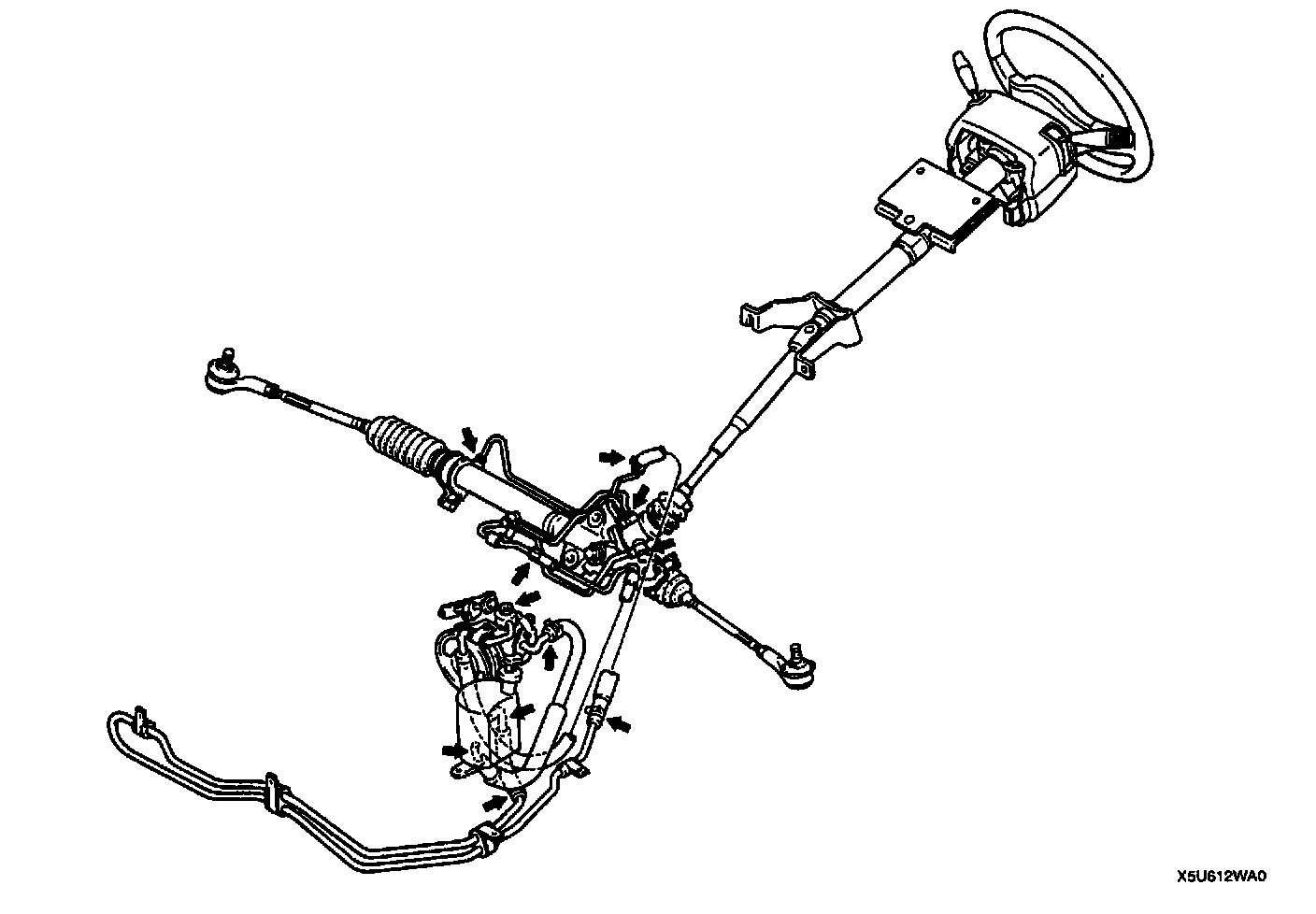

- Start the engine and let it idle. Turn the steering wheel fully left and fully right to apply fluid pressure. Inspect the points shown in the figure for fluid leakage.
