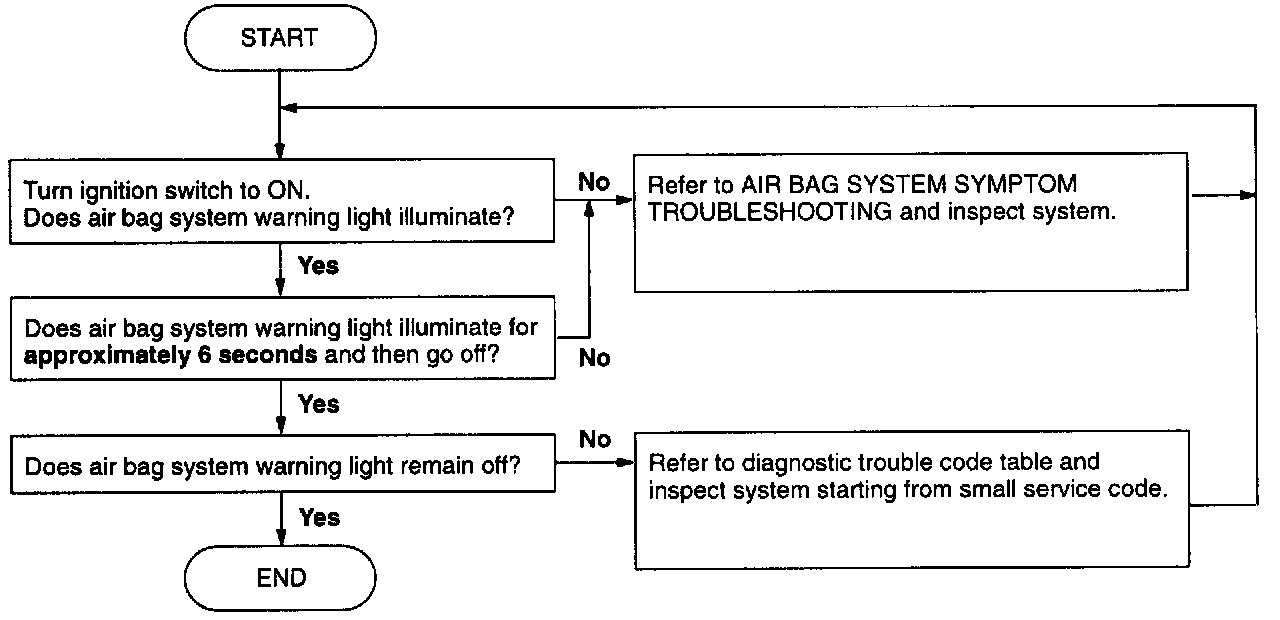

Flow of Diagnosis

The SAS control module has an on-board diagnostic function that flashes or illuminates the air bag system warning light to indicate trouble in the air bag system. The trouble can be determined by the warning light flashing or illumination pattern.
