Throttle Cable/Linkage: Testing and Inspection

THROTTLE CABLE INSPECTION

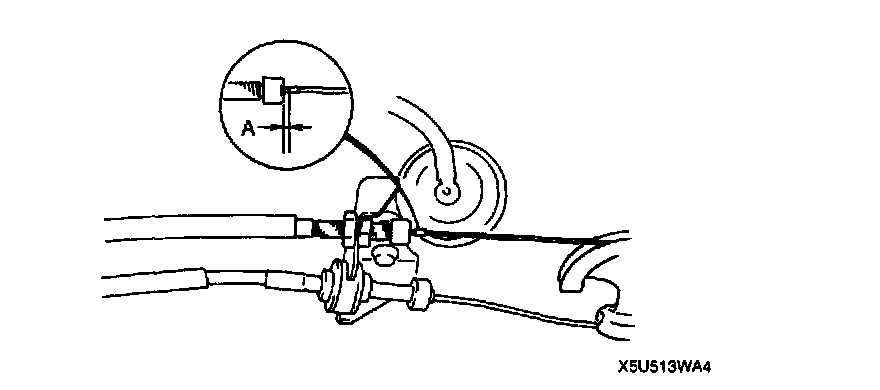

1. Verify that the throttle cable is adjusted within dimension A as shown in the figure below when the throttle cable is in closed throttle position.
Dimension A: 0.8 - 1.5 mm (0.03 - 0.05 inch)
2. If it is not within specification, adjust the throttle cable.
