Throttle Body: Service and Repair

INTAKE SYSTEM REMOVAL AND INSTALLATION

Warning: When the engine and intake-air system are hot, they can badly burn. Turn off the engine and wait until they are cool before removing or installing the Intake-air system.





1. Disconnect the negative battery cable.
2. Drain the engine coolant from radiator.

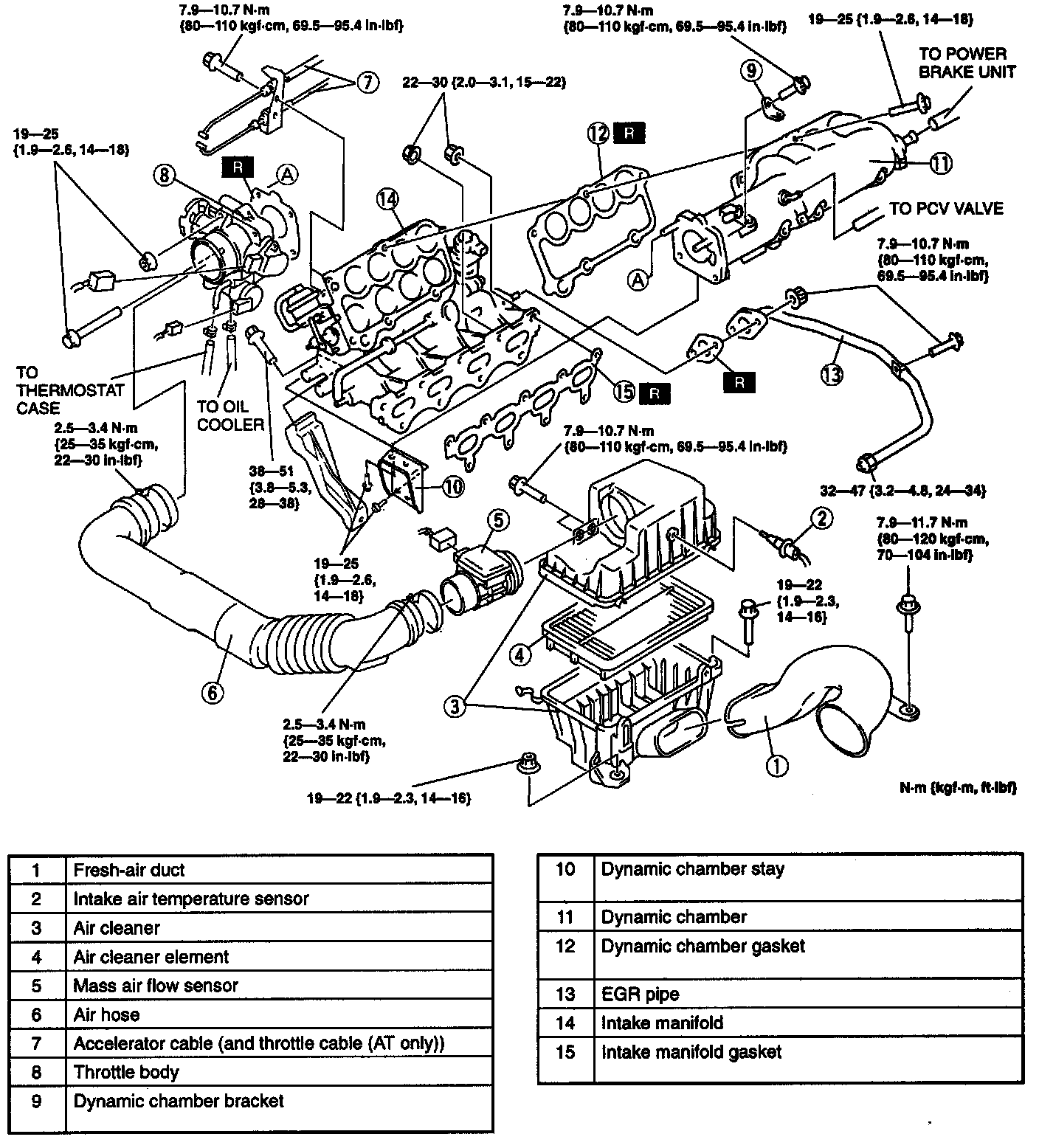

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Refill the engine coolant to radiator.
