Rollover Valve: Testing and Inspection

ROLLOVER VALVE INSPECTION
1. Remove the rollover valve.

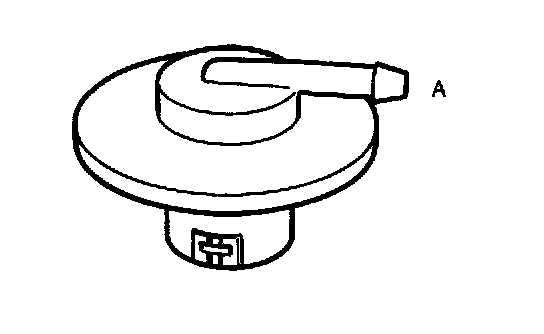

2. Blow from port A and verify that there is airflow.

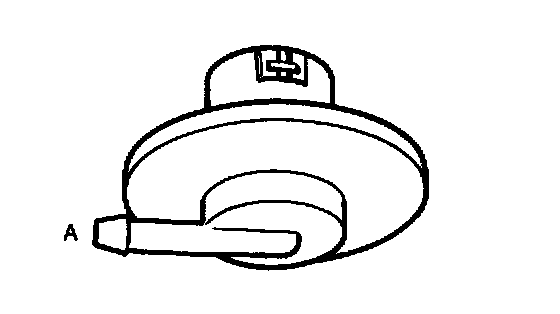

3. Turn the valve over and blow from port A. Verify that there is no airflow.
4. If not as specified, replace the rollover valve.
