Removal and Installation

ROLLOVER VALVE REMOVAL/INSTALLATION
1. Complete the "BEFORE REPAIR PROCEDURE".
2. Disconnect the negative battery cable.
3. Uncover the rear package trim.
4. Remove the service hole cover.

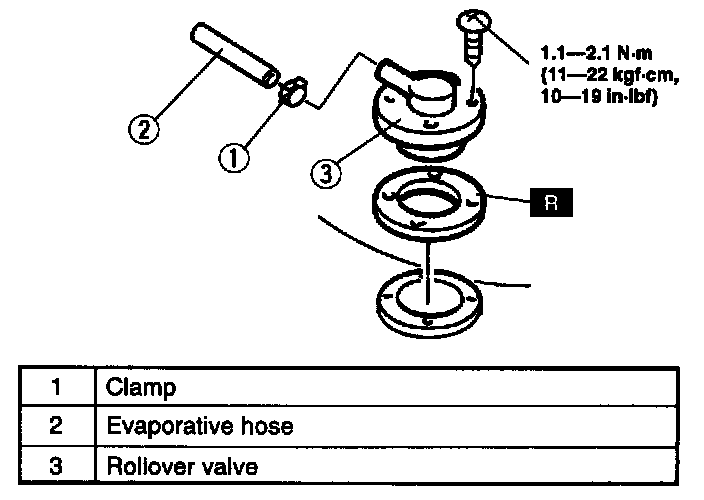

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

Evaporative Hose Installation Note
- Install the evaporative hose until it contacts the stopper.
