Accelerator Pedal: Adjustments

ACCELERATOR CABLE ADJUSTMENT
1. Verify that the throttle valve is at the closed throttle position.




2. Measure the free play of the accelerator cable.

Free play: 1-3 mm (0.04-0.11 in)

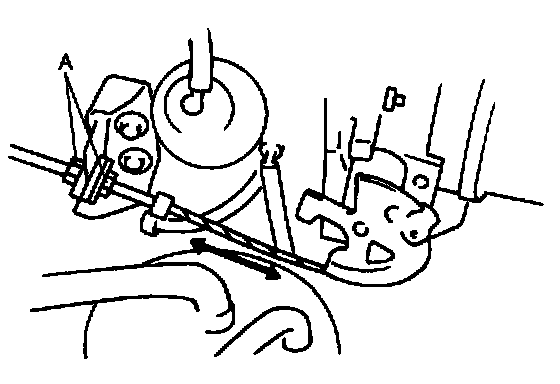

3. If not within the specification, adjust by turning locknuts A.

Tightening torque: 9.8-14 Nm (1.0-1.5 kg.m, 7.3-10 ft.lb)
