Evaporative Emissions Air Separator: Testing and Inspection
EVAPORATIVE CHAMBER INSPECTION1. Remove the evaporative chamber.

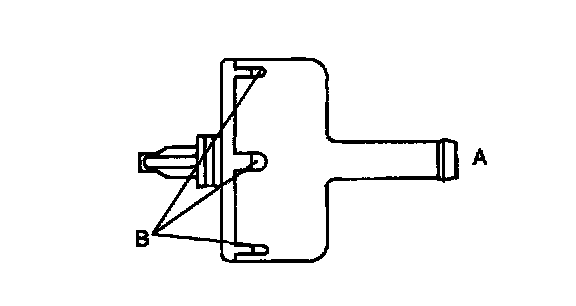

2. Blow from port A and verify that there is airflow from port B.
3. If not as specified, replace the evaporative chamber.
1. Remove the evaporative chamber.
2. Blow from port A and verify that there is airflow from port B.
3. If not as specified, replace the evaporative chamber.
