Canister Purge Solenoid: Service and Repair

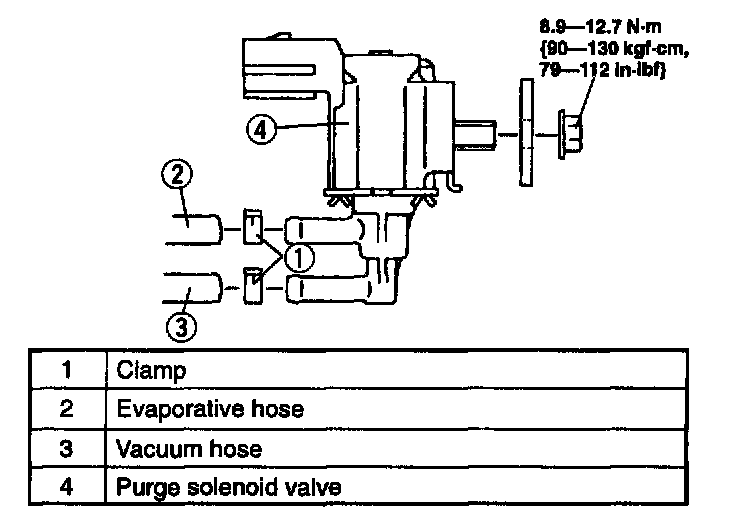

PURGE SOLENOID VALVE REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

Vacuum Hose, Evaporative Hose Installation Note
- Install the vacuum hose and evaporative hose until it contacts the stopper.
