Fluid - Differential: Service and Repair

DIFFERENTIAL OIL REPLACEMENT

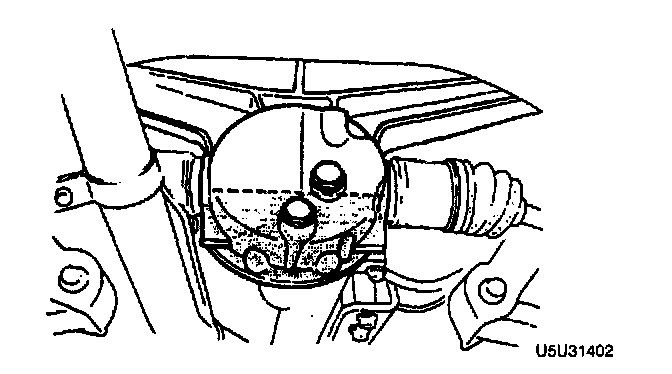

1. Remove the filler and drain plugs.
2. Drain the differential oil into a container.
3. Wipe the plugs clean.
4. Install the drain plug and a new washer.

Tightening torque 40-53 Nm (4.0-5.5 kg-m, 29-39 ft. lbs.)

5. Add the specified oil from the filler plug until the level reaches the brim of the plug hole.

Specified oil
Type (API service GL-5)
Above -18°C (0°F): SAE 90
Below-18°C (0°F): SAE 80
Capacity: 1.00 L (1.06 US quart. 0.88 Imp quart)





6. Install the filler plug.

Tightening torque 40-53 Nm (4.0-5.5 kg-m, 29-39 ft. lbs.)
