Center Mounted Brake Lamp: Service and Repair

HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION




1. Disconnect the negative battery cable.

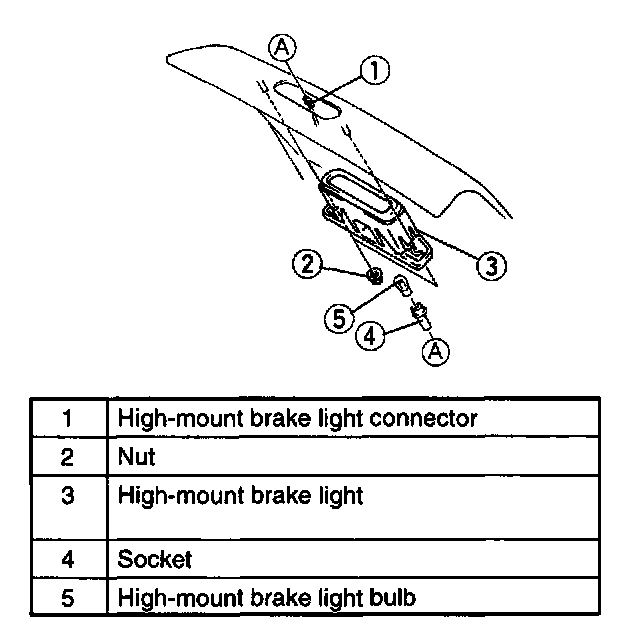

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

High-mount Brake Light Removal Note

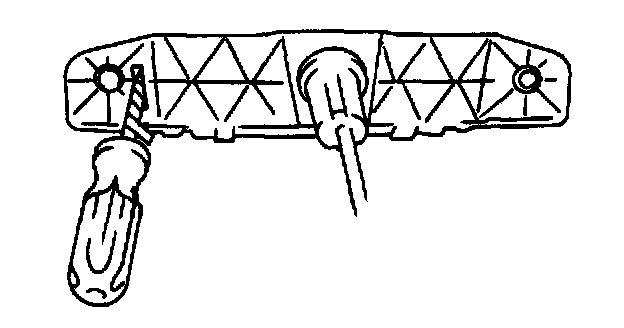

1. Insert a tape-wrapped flathead screwdriver into the left side opening.

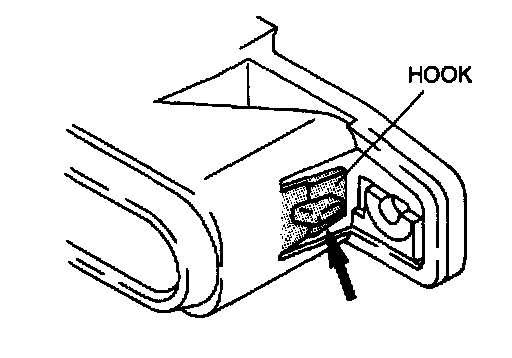

2. Press the hook of the high-mount brake light with a tape-wrapped flathead screwdriver.
3. Pull the high-mount brake light out from the body.
