Dimmer Switch: Service and Repair

PANEL LIGHT CONTROL SWITCH REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the lower panel.




3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

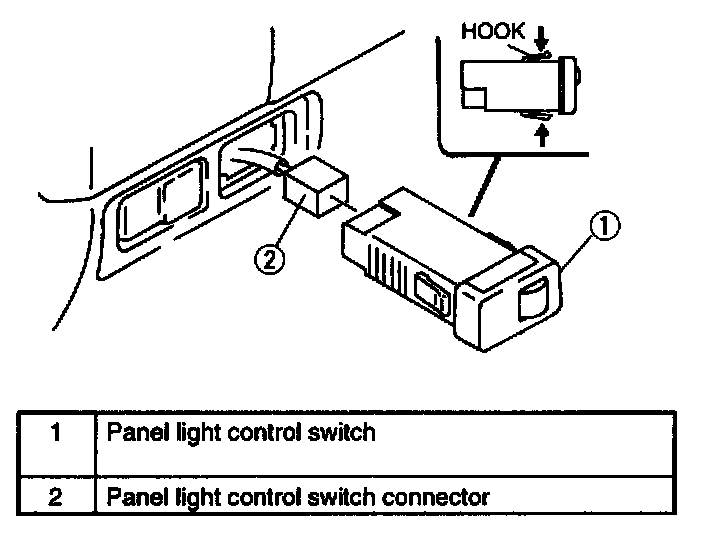

Panel Light Control Switch Removal Note
1. Insert your hand inside the dashboard and press the hooks of the panel light control switch.
2. Pull the panel light control switch out from the dashboard.
