Cigarette Lighter: Service and Repair

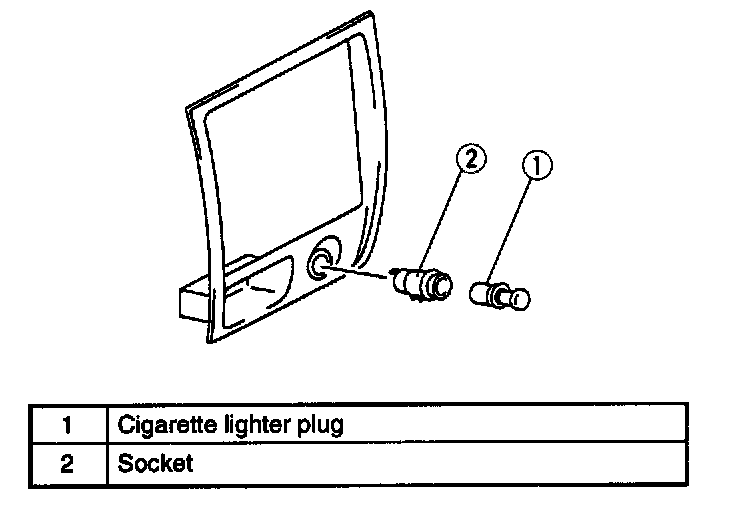

CIGARETTE LIGHTER REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the center panel.




3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

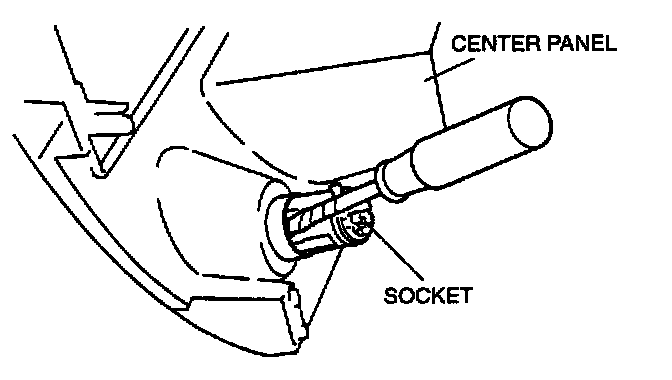

Socket Removal Note




1. Pry up the stopper with the tape-wrapped flathead screwdriver.
2. Pull the socket while prying up the stopper.
