Blower Motor Resistor: Testing and Inspection

1. Disconnect the resistor connectors.

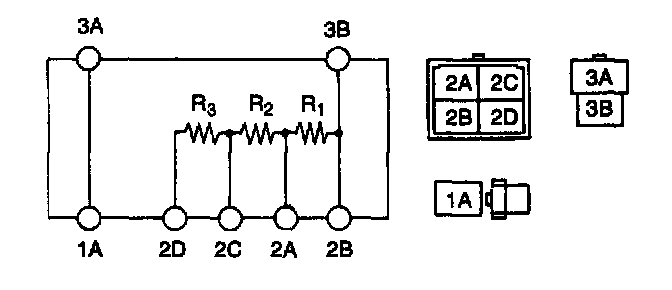

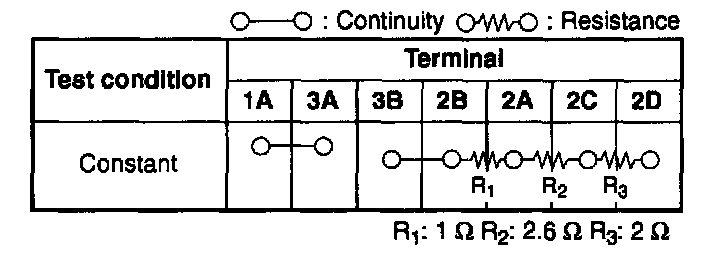

2. Inspect for continuity between the resistor terminals by using an ohmmeter.
3. If not as specified, replace the resistor.
