Home
>>
Mazda
>>
1999
>>
MX-5 Miata L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

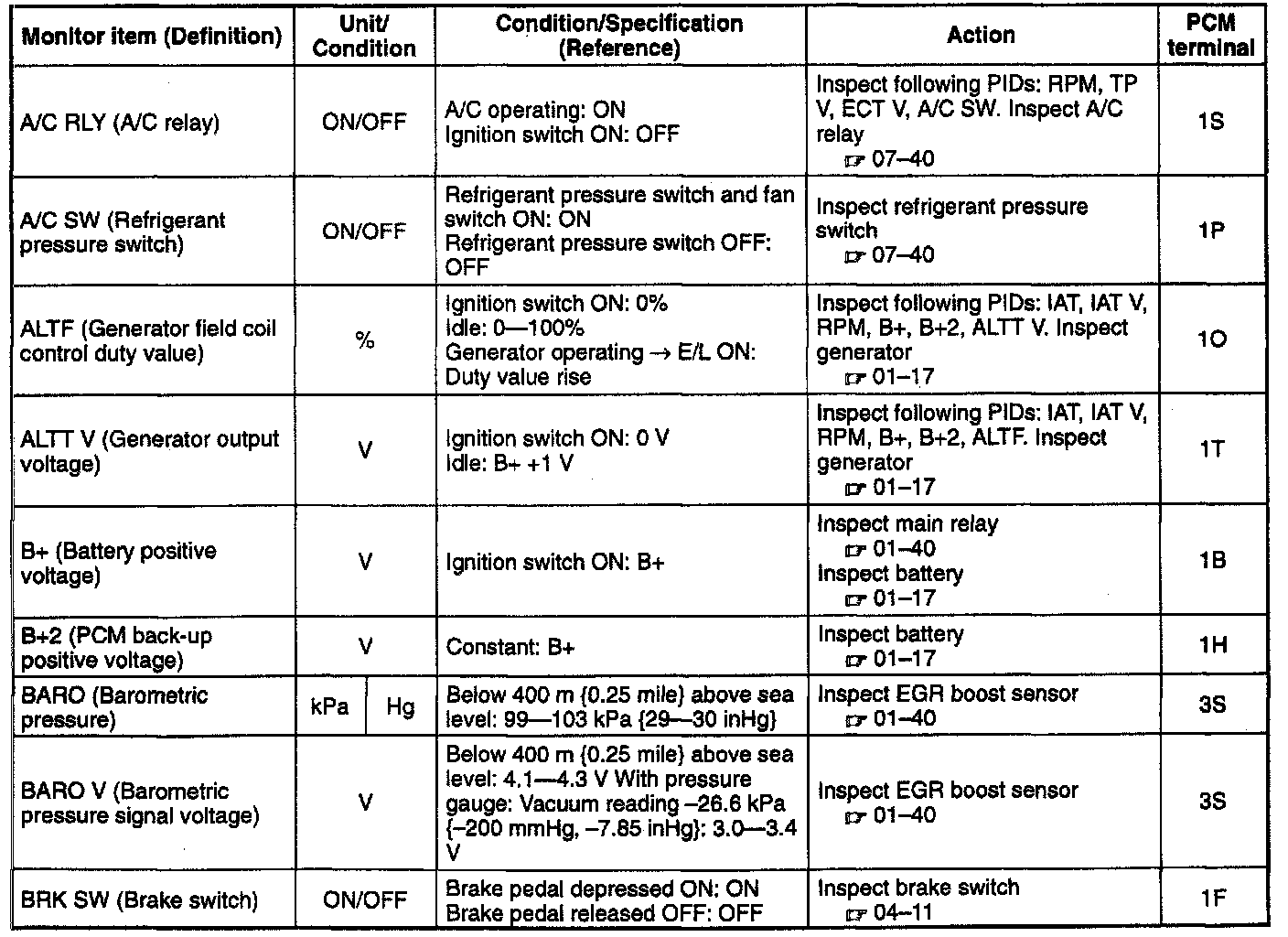

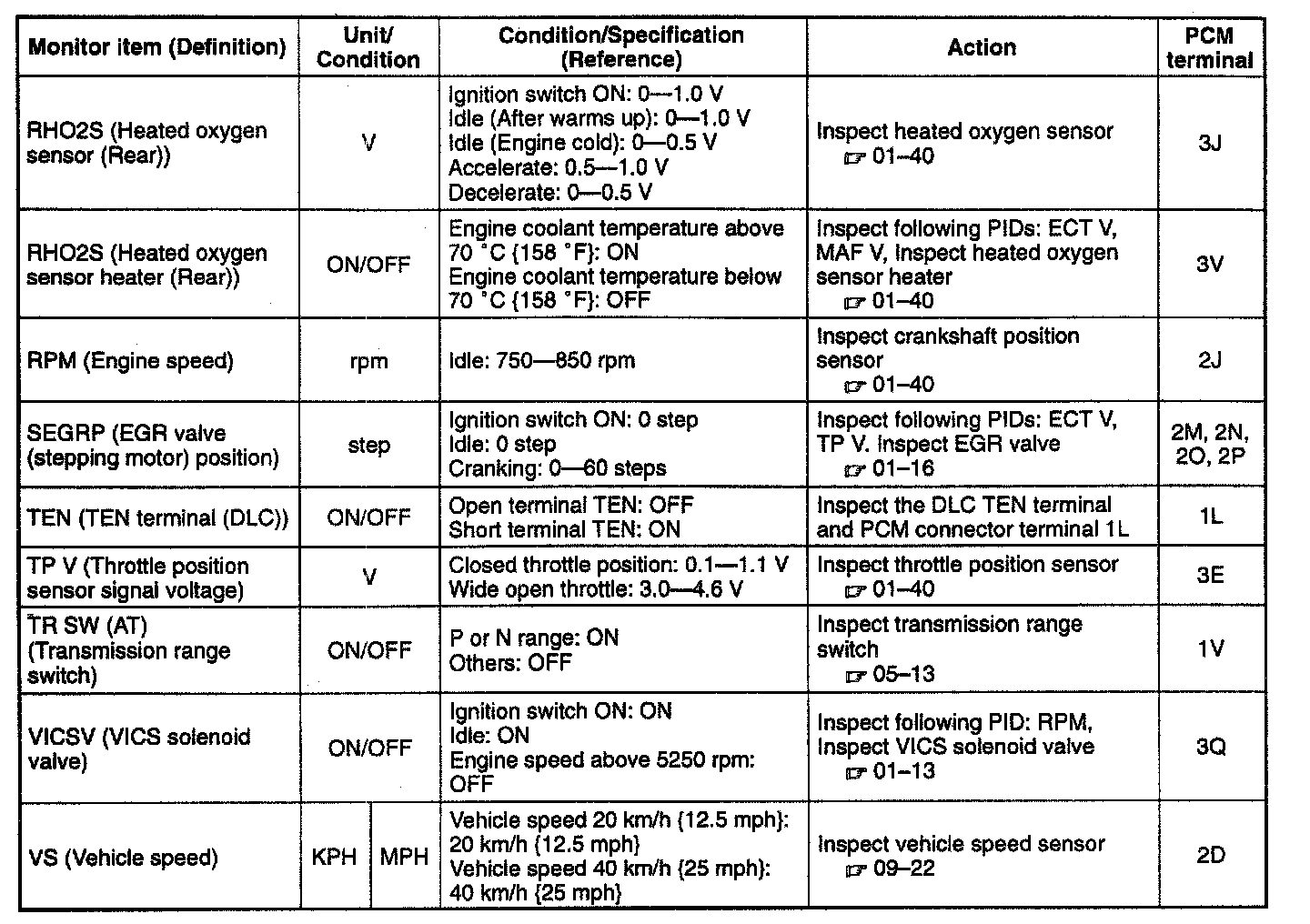

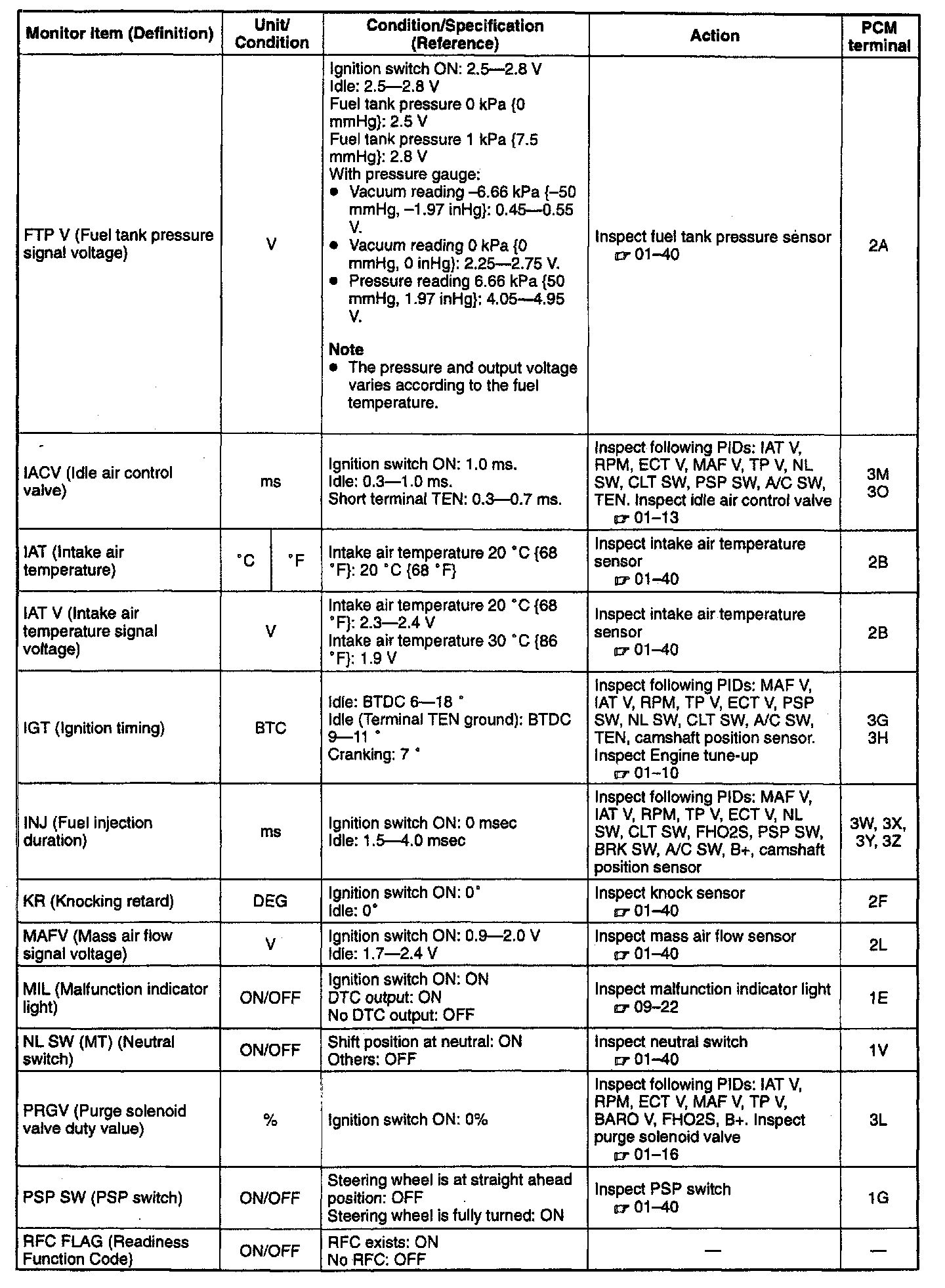

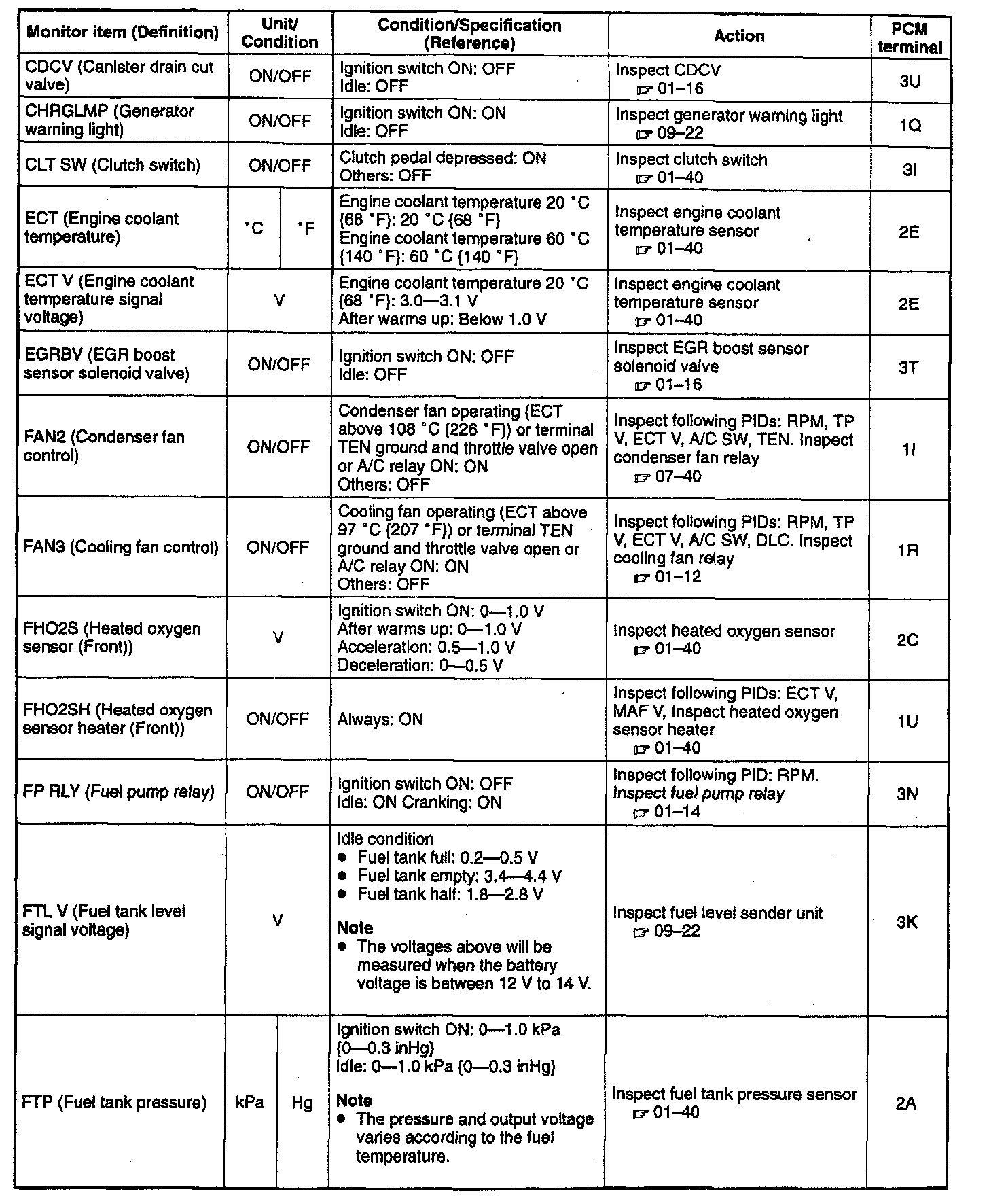

B1-01 PCM:
