Parking Brake Lever: Service and Repair

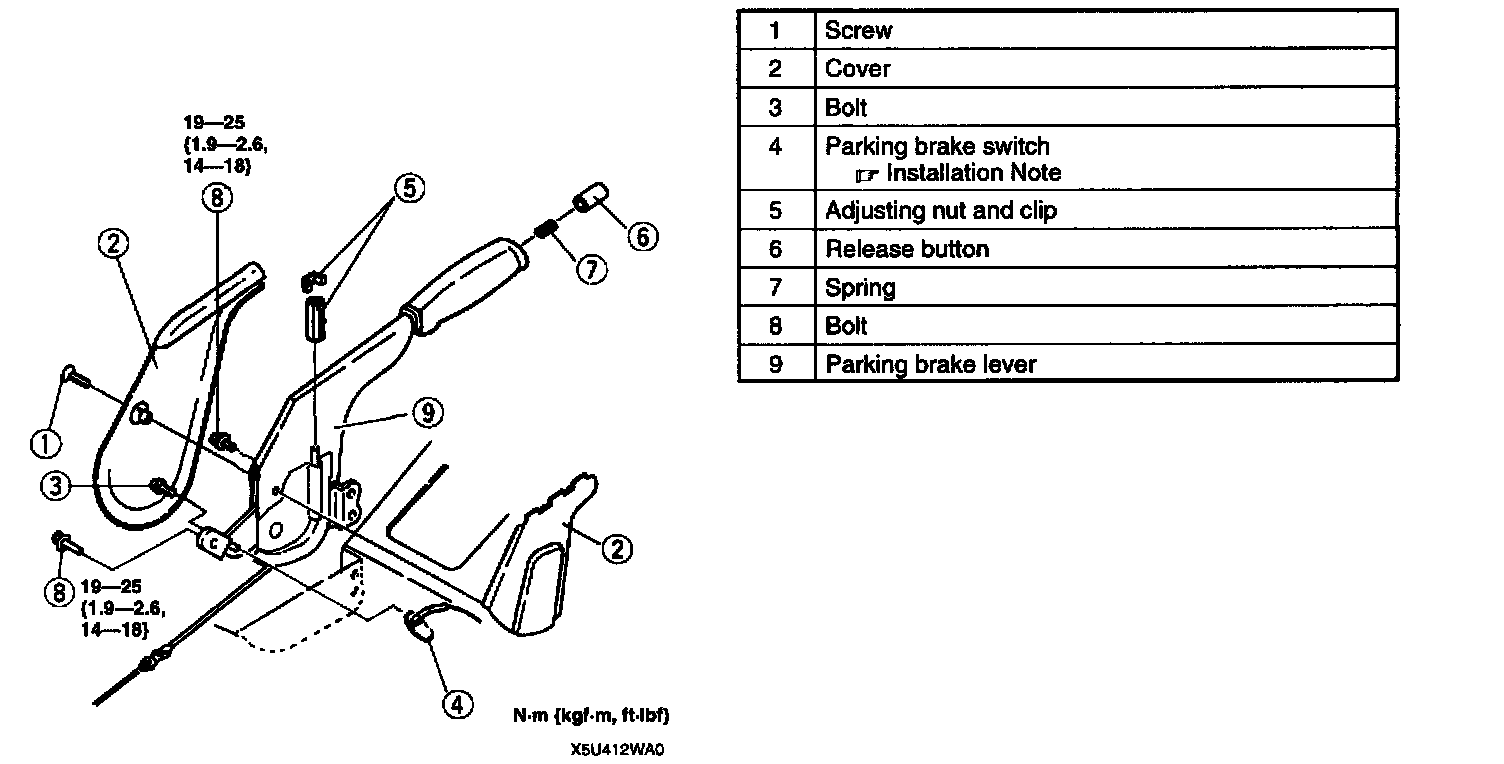

PARKING BRAKE LEVER REMOVAL/INSTALLATION





1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, adjust the parking lever stroke.

Parking Brake Switch Installation Note
1. Install the parking brake switch so that it contacts the parking brake lever when the lever is fully released.
2. Turn the ignition switch to ON, and verify that the parking brake warning light illuminates with the lever pulled up one notch.
