Disassembly and Reassembly

DISASSEMBLY/ASSEMBLY
1. After removing the brake fluid, disassemble in the order indicated in the table.
2. Assemble in the reverse order of removal.

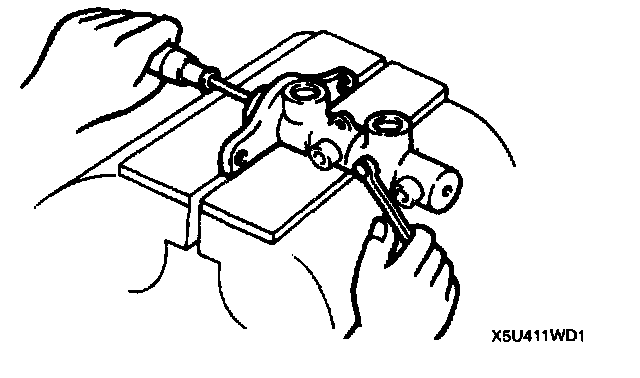

Stop Pin And O-ring (ABS Model) Assembly Note
1. Install the secondary piston component with the piston hole facing the stop pin.
2. Install and tighten a new O-ring and the stop pin.





3. Push and release the piston to verify that it is held by the stop pin.
