Diagnostic Index

DIAGNOSTIC INDEX

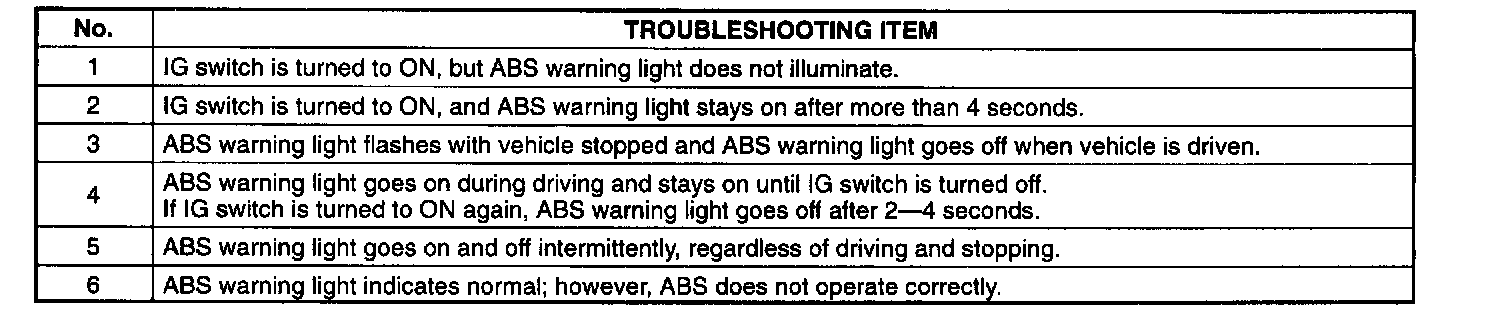

^ Use the table to determine the problem and go to the appropriate troubleshooting procedure.


SYMPTOM TROUBLESHOOTING

Caution:
^ Disconnecting and connecting the ABS CM connector must be done with the ignition switch off.
^ When attaching the tester lead to the harness connector terminal, the Special Service Tool (SST) must be used.
^ Reinspect for the diagnostic trouble codes and repair as necessary after completion.

Note: It any symptoms have appeared in the past and are normal at present, a possible cause is a temporarily poor contact in the wiring harness or connector. The ABS CM is normal.
