Efficient Installation of Body Panels

EFFICIENT INSTALLATION OF BODY PANELS

Checking Preweld Measurements And Watching

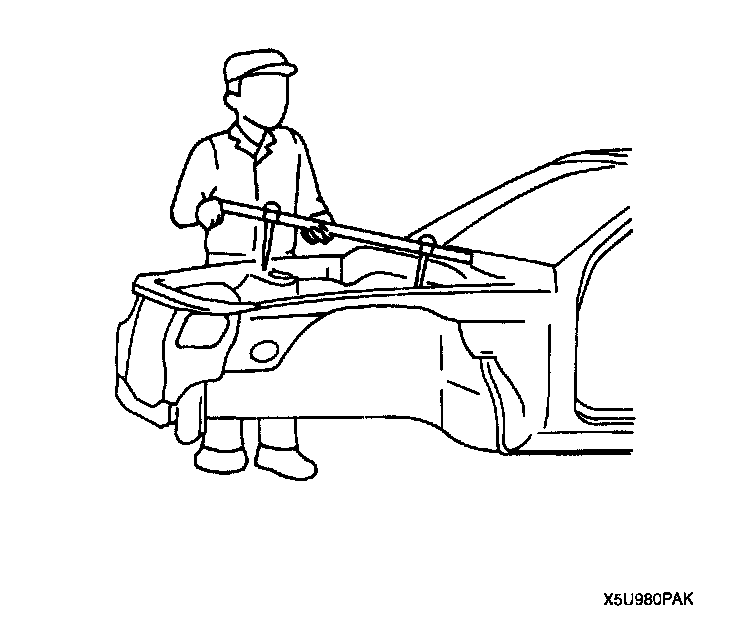

- Align to the standard reference dimensions, based upon the body dimensions illustration, so that new parts are installed in the correct position.

Welding Notes

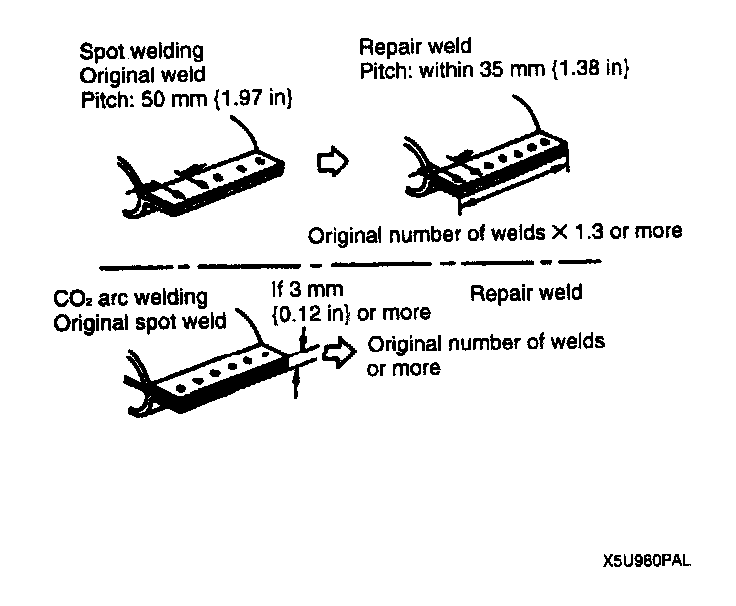

- For the number of weld points, welding should be performed in accordance with the following reference standards.

Spot Welding Notes

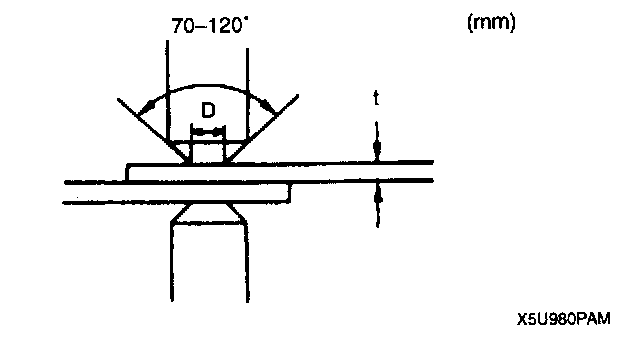

- The shape of the spot welder tip is D = (2 x t) + 3. If the upper panel thickness is different from that of the under panel, adjust to the thinner one.

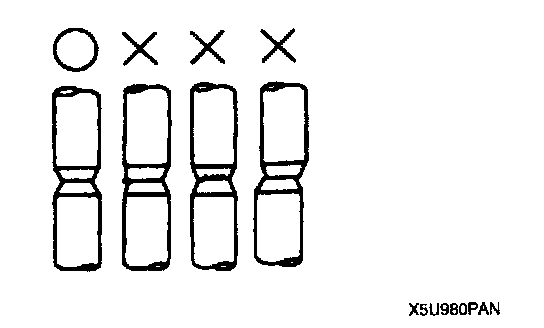

- Because the weld strength is affected by the shape of the spot welder tip, the optimum condition of the tip should always be maintained.
- Spot welds should be made at points other than the originally welded points.

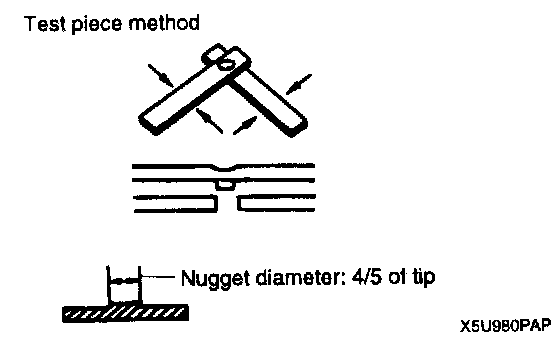

- Before spot welding, make a trial weld using the same material as the body panel to check the weld strength.
