Instrument Cluster

NOTE: In INSTRUMENT CLUSTER INPUT/OUTPUT CHECK MODE, it is possible to check the item in the following chart.

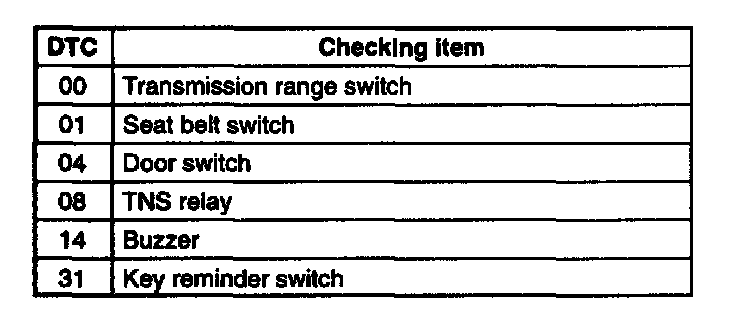

Diagnostic Trouble Code Chart

NOTE: Diagnostic trouble code which are not listed may be indicated, but they cannot be inspected.
