Air Bag System

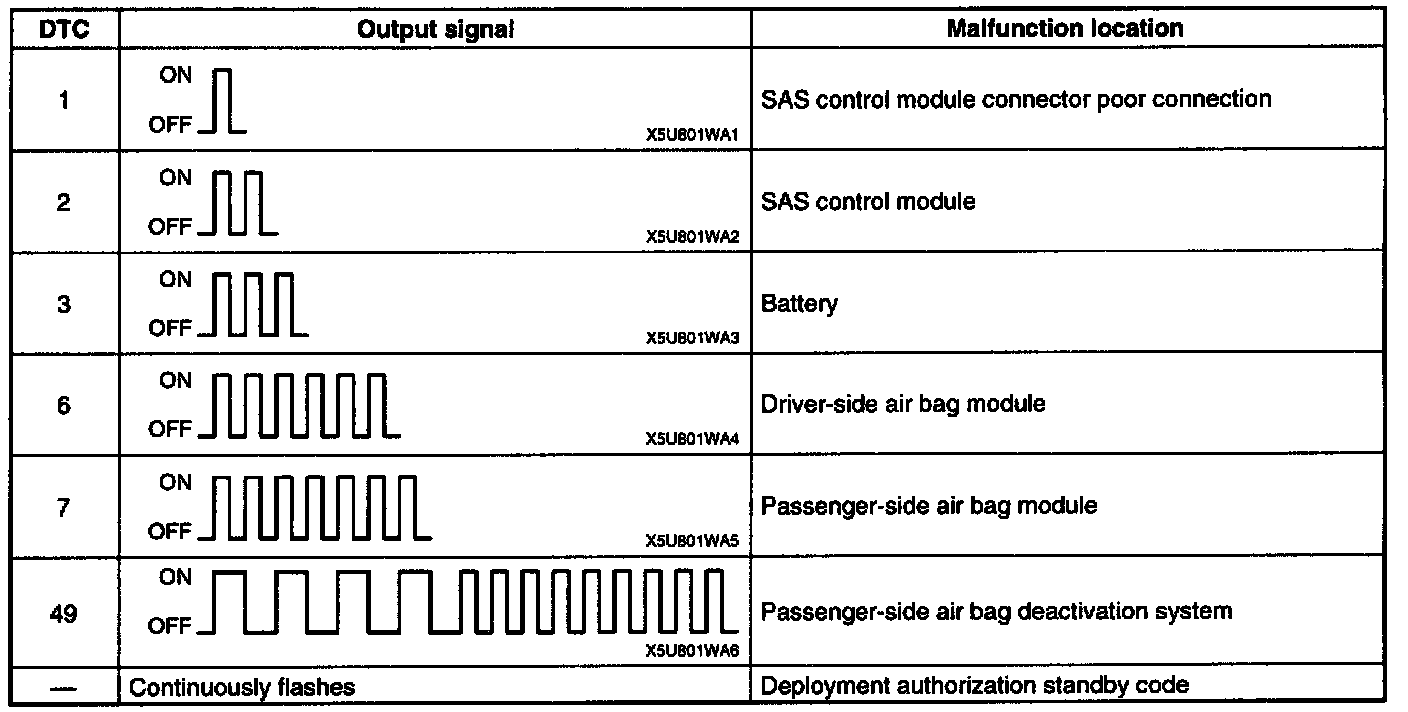

Diagnostic Trouble Code Table

CAUTION: When replacing a new SAS control module and the output pattern continuously flashes (standby code), perform the deployment authorization procedures. (Refer to AIR BAG MODULE DEPLOYMENT AUTHORIZATION PROCEDURES.)
