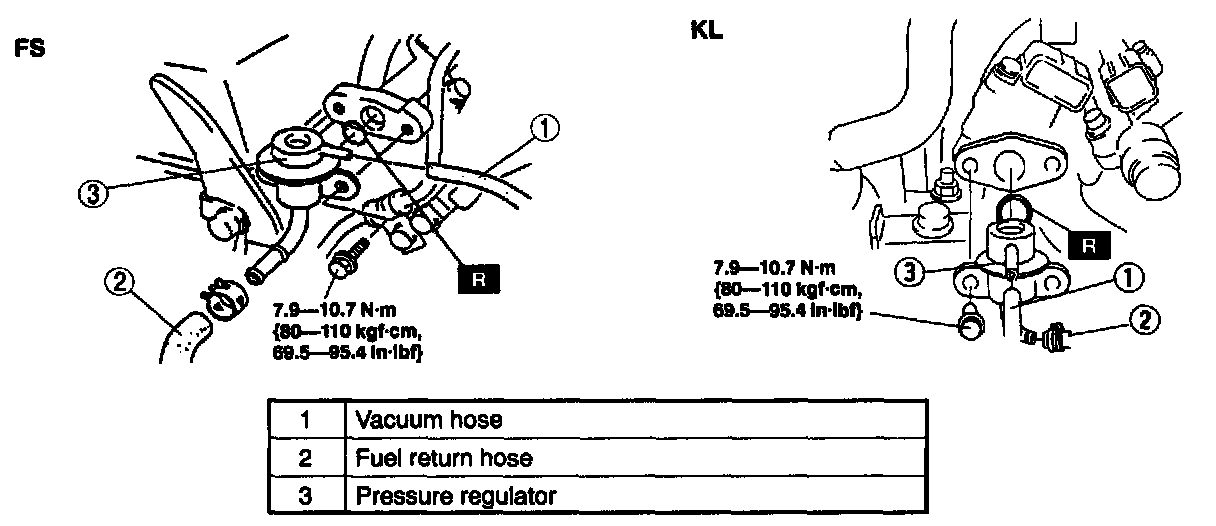

Pressure Regulator Removal/installation

1. Release fuel pressure.

Fuel Pressure Release

2. Disconnect the negative battery cable.




3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Complete the "AFTER REPAIR PROCEDURE".
